Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1H2/LC
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Motor: |
3.7KW ADC Brand |
Controller: |
350A USA Curtis |
Battery: |
48V Trojan Battery 6*8V |
Transaxle: |
Italy Graziano Axle |
Warranty: |
1 Year |
Lead Time: |
15 Days |
Chassis: |
Steel Chassis |
Pay Load: |
600 KG (Down) / 300KG (UP) |
Motor: |
3.7KW ADC Brand |
Controller: |
350A USA Curtis |
Battery: |
48V Trojan Battery 6*8V |
Transaxle: |
Italy Graziano Axle |
Warranty: |
1 Year |
Lead Time: |
15 Days |
Chassis: |
Steel Chassis |
Pay Load: |
600 KG (Down) / 300KG (UP) |

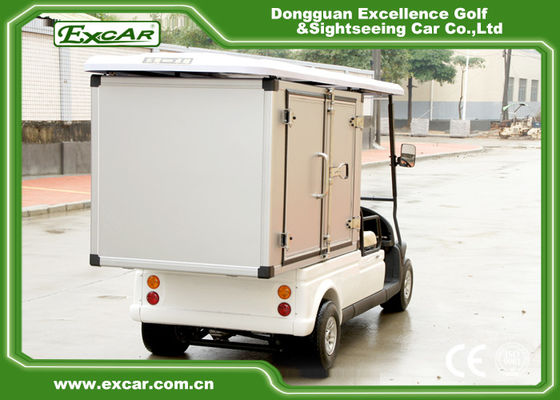

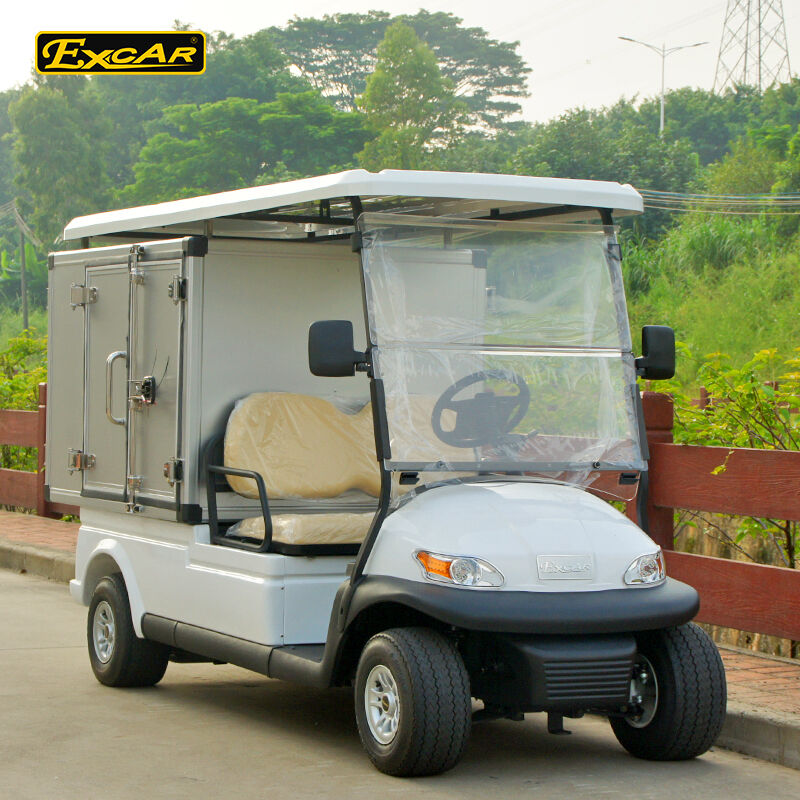

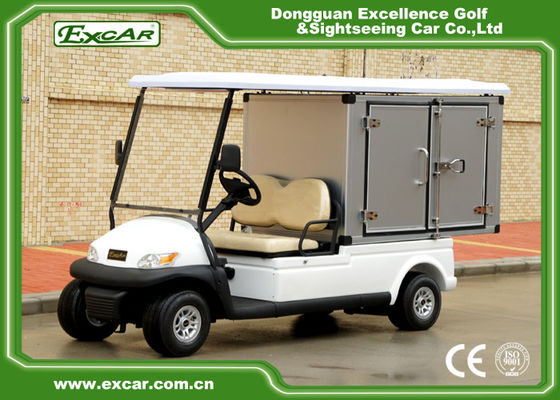

White 4 Seats 48V Trojan battery Hotel Buggy Car Electric Golf Cart With Container
Configuration
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited |
ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle |
Italian GRAZIANO axle |
| Charger |
High Frequency onboard charger |
High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Packing & Shipping
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units |
|
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories
.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Product showroon
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
