Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1H2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 pcs per month
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A Chinese Controller |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Chassis: |
Steel Chassis |
Climbing Capacity: |
25% |
Transaxle: |
Chinese Axle |
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A Chinese Controller |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Chassis: |
Steel Chassis |
Climbing Capacity: |
25% |
Transaxle: |
Chinese Axle |

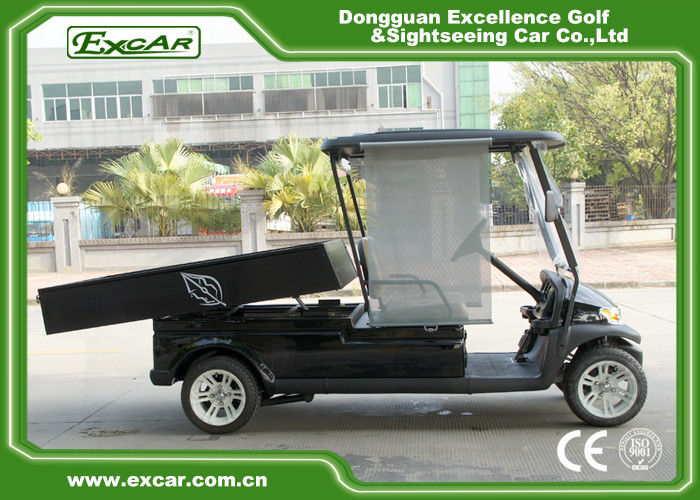

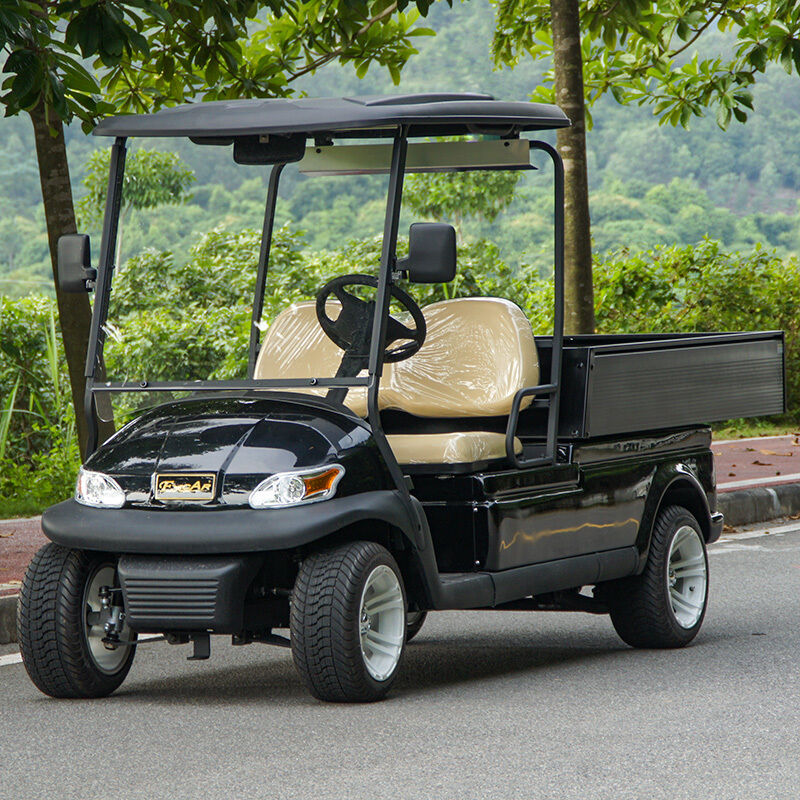

Two Seats Black ADC 48V 3.7KW Motor Electric Food Cart Electric Transport Golf Cart
Feather of golf cart:
1.Type sofa chair, comfortable
2. Efficient Chinese driving axle
3.FR/disc RR/drum, safety golf cart’s higher driving ability
4, Global unique E-KEY
5. Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
6,Electromagnetic brake
Configuration
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Chinese AC controller ,350A |
| Motor |
ADC brand Separately excited |
ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Chinese axle |
Chinese axle |
| Charger |
High Frequency onboard charger |
High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3400x1200x1800mm |
| Ground clearance | 114mm |
| Wheelbase | 2260mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories
.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | lifted kit |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1H2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3400x1219x1800 | 3400*1219*1250 | 2 units | 4units | 6units |
12units |
|
Product showroon
FAQ
1, what's your warranty time?
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6,What's your payment term?
T/T 30% deposit and balance paid before shipment
