Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Can Be Customized |
Roof Color: |
White,black And White |
Seat Color: |
White,black And White |
Motor: |
ADC Motor 48V 3KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery |
Charger: |
Intelligent Onboard Charger |
Transaxle: |
Italy Graziano Axle |
Brand: |
EXCAR |
Body Color: |
Can Be Customized |
Roof Color: |
White,black And White |
Seat Color: |
White,black And White |
Motor: |
ADC Motor 48V 3KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery |
Charger: |
Intelligent Onboard Charger |
Transaxle: |
Italy Graziano Axle |
Brand: |
EXCAR |

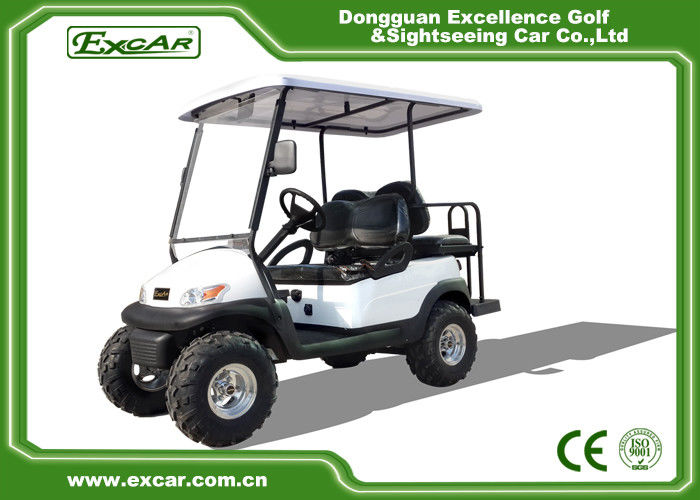

EXCAR 48V 3KW 4 Seat dune buggy club car golf cart electric cars suv beach buggy car
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Description
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited | ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle | Italian GRAZIANO axle |
| Charger | High Frequency onboard charger | High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 360kgs | 360kgs |
| Min.turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3100x1200x2100mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Product details
FAQ:
1, what's your warranty time?
Usually for 1 year
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
If you need,we can arrange our technist person to fly to your area and help you solve it.
