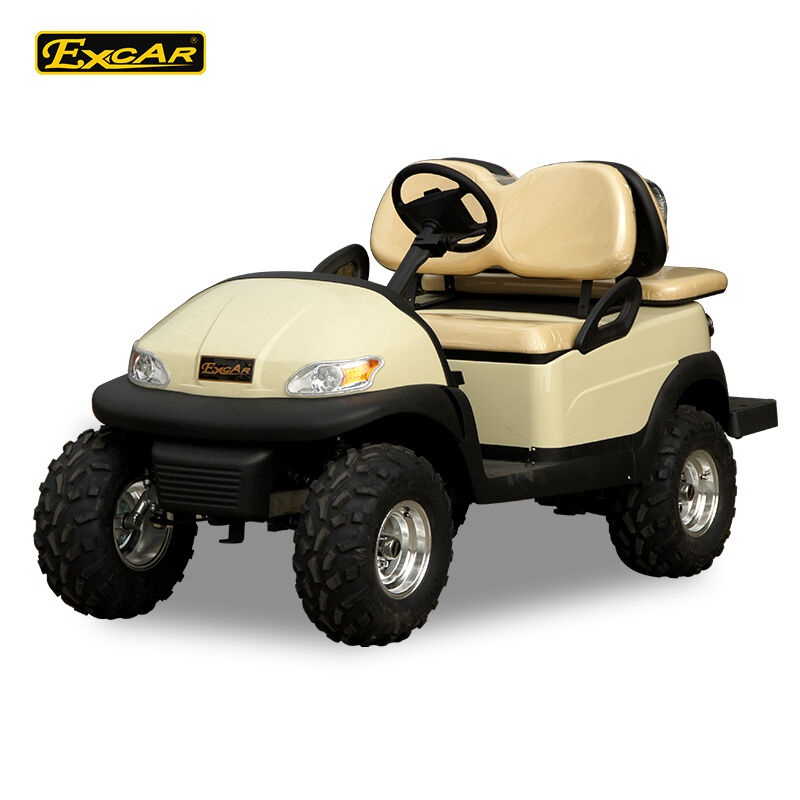

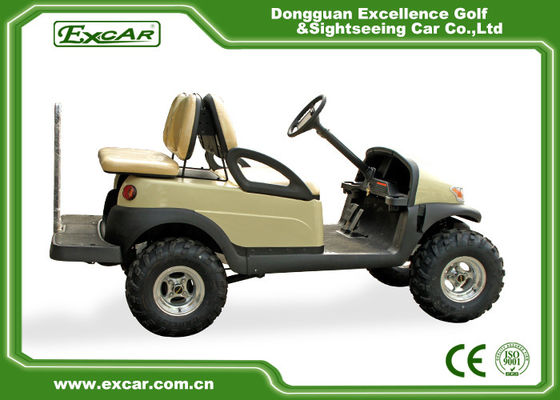

Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller

Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller
Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller

Large Image :  Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller

Product Details:

Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1H2/CC

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Detailed Product Description
Motor: 3.7KW ADC Brand Controller: 350A USA Curties
Battery: 48V Trojan Battery 6*8V Charger: 17A Regular
Transaxle: Italy Graziano Axle Tyre: 205/50-10 Tyre
Color: Yellow Brand: EXCAR
High Light:

electric utility car

,

electric utility vehicle

EXCAR yellow 4 seater without roof golf cart beach cart china electric golf cart for sale


Configuration


Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited
DC motor 48V 3.7kw

ADC brand Separately excited
AC motor 48V 5kw

Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle
with gear ration 1:12

Italian GRAZIANO axle
with gear ration 1:16

Charger

High Frequency onboard charger
48V/17A regulator

High Frequency onboard charger
48V/17A regulator


Performance


Item Description
system DC system AC system
Passenger Capacity 4 4
Climbing capacity(full load) 30% 35%
Max. forward speed 23km/h 45km/h
Endurance mileage 70-90km 80-90km



Dimensions



Item Description
Overall dimensions (L x W x H) 2641x1219x1727mm
Ground clearance 114mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel



* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
*2) Range will vary depending on temperature, grade, payload and driving style.



Packing & Shipping



Excar golf cart will be packed in steel crate



Model Dimension(mm) 20” container 40” container
A1H2/CC With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield
3400*1200*1900 3400*1200*1200 2 units 4units 6units 12units


Product showroon


Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller 0
Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller 1
Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller 2
Battery Powered Utility Vehicles / Electric Utility Carts 350A USA Curties Controller 3



Service

1.For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.

3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem
