Product Details:
Payment & Shipping Terms:
|
Motor: | 3.7KW ADC Brand | Controller: | 350A USA Curties |
---|---|---|---|
Battery: | 48V Trojan Battery 6*8V | Charger: | 17A Regular |
Transaxle: | Italy Graziano Axle | Tyre: | 205/50-10 Tyre |
Brand: | EXCAR | Seat: | Soft And Supported By Plastic Board |
F/R Track: | 860 / 970 MM | Dimension: | 3400*1200*1800 MM |
High Light: | electric utility car,electric utility vehicle |

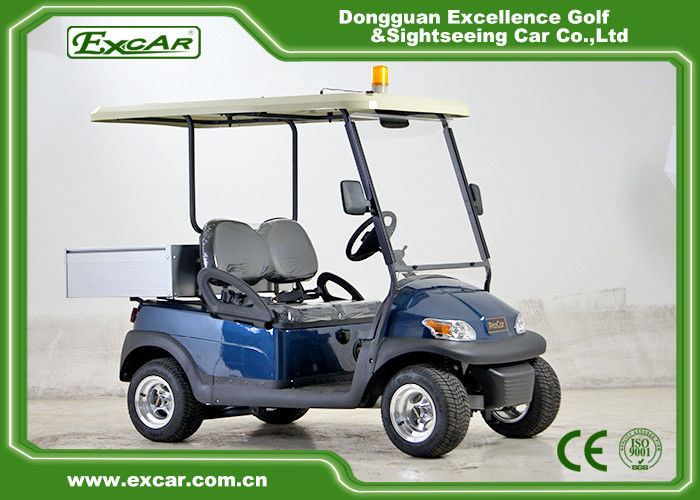

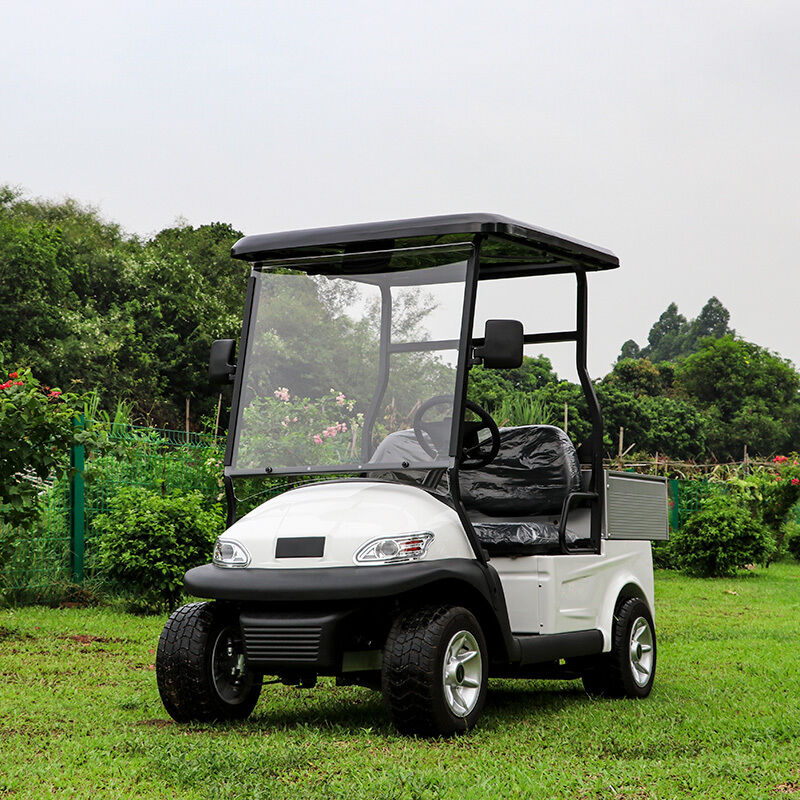

Excar 48V trojan battery 2 seater electric utility carts electric food buggy cart
Specification
The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We’ re a more reliable partner.
This type of golf cart is becoming more and more popular, and we're selling very well over the country.
Configuration
Item | Description | |
System | DC system | AC system |
Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
Motor |
ADC brand Separately excited |
ADC brand Separately excited |
Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
Transaxle |
Italian GRAZIANO axle |
Italian GRAZIANO axle |
Charger |
High Frequency onboard charger |
High Frequency onboard charger |
Performance
Item | Description | |
system | DC system | AC system |
Passenger Capacity | 2 | 2 |
Climbing capacity(full load) | 30% | 35% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 70-90km | 80-90km |
Horn | Electric horn, 48V |
Reverse buzzer | Electric, 48V |
Combination switch | Control the lights and horn |
Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Dimensions
Item | Description |
Overall dimensions (L x W x H) | 3400x1200x1800mm |
Ground clearance | 114mm |
Wheelbase | 2260mm |
Front wheel tread (mm) | 860mm |
Rear wheel tread (mm) | 970mm |
Floor mat | Anti-skidding rubber |
Rear basket | Plastic |
Golf bag holder | Plastic support with nylon strap |
Dashboard | Black plastic material, battery power indicator, ignition key on it |
Beverage holders | 4 pcs cups holders, 2 pcs for each side |
Side trim | Plastic, black |
Score card holder | On the steering wheel |
Body and Frame
Item | Description |
Frame & Chassis | Aluminum alloy beam, bended |
Body | PP engineering plastic front and rear body cover, injected |
Roof | Glass fiber reinforced plastic |
Windshield | Organic glass (PMMA), one-piece or two pieces |
Roof supports | Imbedding black coating steel tube in the plastic support |
Cushion | Reborn sponge with artificial leather and plastic bottom cover |
Backrest | Reborn sponge with artificial leather and plastic cover |
Armrest | Plastic |
Floor mat | Anti-skidding rubber |
Rear basket | Plastic |
Golf bag holder | Plastic support with nylon strap |
Dashboard | Black plastic material, battery power indicator, ignition key on it |
Beverage holders | 4 pcs cups holders, 2 pcs for each side |
Side trim | Plastic, black |
Score card holder | On the steering wheel |
Color Options
Body colour | White | Grey | Sky blue |
Dark blue | Red | Wine red | |
Green | Dark green | Yellow | |
Purple | Champagne | Black | |
These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
Seat & Roof colour | Black | Beige | White |
Product showroon
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
