Product Details:
Payment & Shipping Terms:
|
| Body Color: | White, Black | Roof Color: | White |
|---|---|---|---|
| Seat Color: | Beige Or Black | Lead Time: | 7-15 Days After Deposit Paid |
| Warranty: | 2 Years Since The Day To Ship Out | Logo: | Excar Silver Logo Or Gold Logo Or Customized |
| Color: | White | Range: | 60-80KM |
| Battery: | 72V Trojan Battery | ||
| High Light: | electric utility car,electric utility vehicle |
||
Trojan Batteries Electric Utility Carts , Utility Golf Carts Kds 72v 7.5kw Acim Moter
Specification
| Configuration | |||
| Battery | 9*8V 415AH Trojan T-875 | ||
| Power of Motor | 72V 7500W | ||
| Controller | American Curtis Electronics Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Transaxle | Italy Graziano axle | ||
| Charger | Intelligent Onbaord Charger | ||
| Chassis configuration | |||
| Front-Suspension | Independent Spring Front Suspension | ||
| Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
| Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
| Performance | |||
| Max Speed | 40km/h | Chassis | Aluminum |
| Max Travel Distance | 80-100km | Wheelbase | 2100mm |
| Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50dB | Tires | 205/50-10 |
| Carrying Capacity | 800KG | Dimension | 4100*1500*2000mm |
| Turning Radius | 2900mm | Passengers | 2 Person |
| Net Weight | 1390kg | Ground Clearance | 170mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color Option
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |

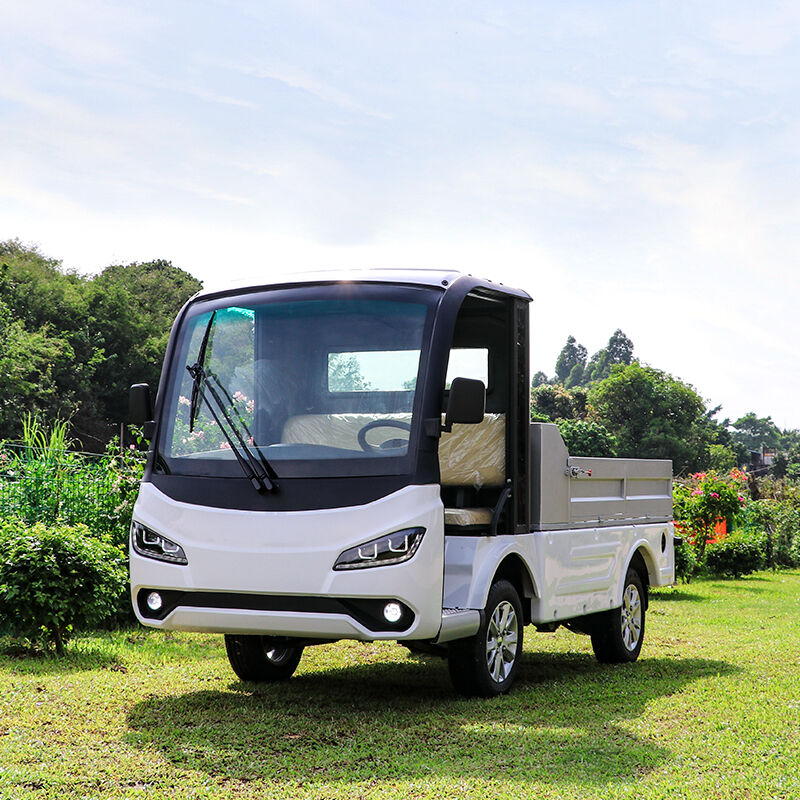

Product Image
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
