Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: G1H2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
White, Black |
Roof Color: |
White |
Seat Color: |
Beige Or Black |
Lead Time: |
7-15 Days After Deposit Paid |
Warranty: |
2 Years Since The Day To Ship Out |
Logo: |
Excar Silver Logo Or Gold Logo Or Customized |
Color: |
White |
Range: |
60-80KM |
Battery: |
72V Trojan Battery |
Body Color: |
White, Black |
Roof Color: |
White |
Seat Color: |
Beige Or Black |
Lead Time: |
7-15 Days After Deposit Paid |
Warranty: |
2 Years Since The Day To Ship Out |
Logo: |
Excar Silver Logo Or Gold Logo Or Customized |
Color: |
White |
Range: |
60-80KM |
Battery: |
72V Trojan Battery |
2 Seat 72V Trojan Batteries Electric Utility Carts KDS 7.5KW AC Motor
Body and Frame
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Specification
| Configuration | |||
| Battery | 9*8V 415AH Trojan T-875 | ||
| Power of Motor | 72V 7500W | ||
| Controller | American Curtis Electronics Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Transaxle | Italy Graziano axle | ||
| Charger | Intelligent Onbaord Charger | ||
| Chassis configuration | |||
| Front-Suspension | Independent Spring Front Suspension | ||
| Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
| Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
| Performance | |||
| Max Speed | 40km/h | Chassis | Aluminum |
| Max Travel Distance | 80-100km | Wheelbase | 2100mm |
| Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50dB | Tires | 205/50-10 |
| Carrying Capacity | 800KG | Dimension | 4100*1500*2000mm |
| Turning Radius | 2900mm | Passengers | 2 Person |
| Net Weight | 1390kg | Ground Clearance | 170mm |
Color Option
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |

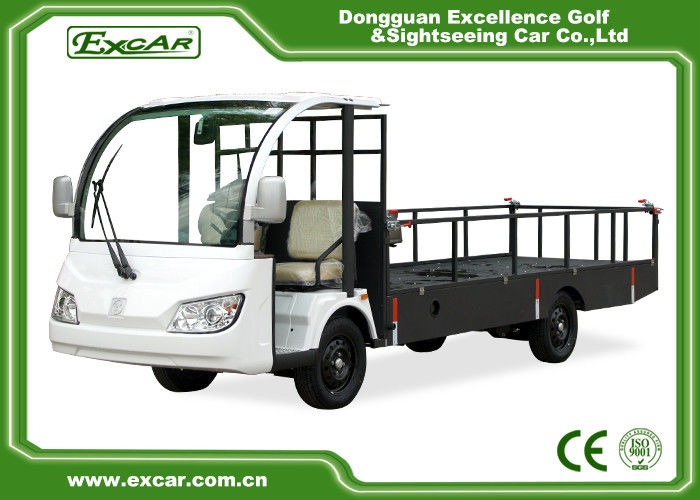

Product Image
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
