Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A14+2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container
Delivery Time: about 15 working days
Payment Terms: L/C, T/T
Supply Ability: 300 pcs per month
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Pay Load: |
Aluminum Chassis |
Seat: |
Soft And Supported By Plastic Board |
F/R Track: |
860/ 970 MM |
Dimension: |
3500*1200*1900 MM |
Transaxle: |
Italy Graziano Axle |
Motor: |
ADC 48V 5KW Acim |
Controller: |
350A USA Curties |
Battery: |
48V Trojan Battery 6*8V |
Brand: |
EXCAR |
Tyre: |
205/50-10 Tyre |
Pay Load: |
Aluminum Chassis |
Seat: |
Soft And Supported By Plastic Board |
F/R Track: |
860/ 970 MM |
Dimension: |
3500*1200*1900 MM |
Transaxle: |
Italy Graziano Axle |

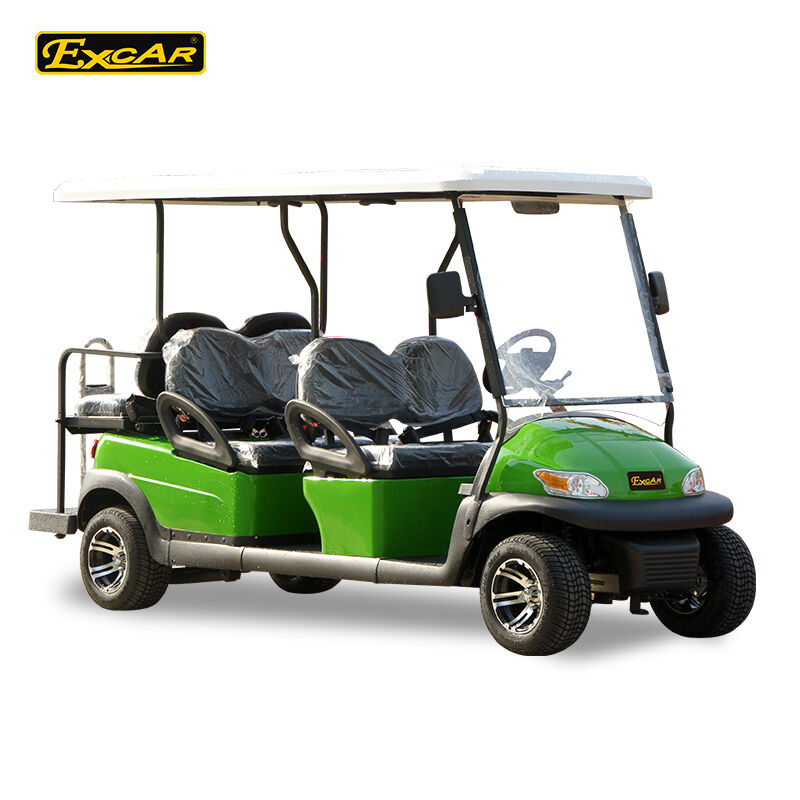

Excar CE approved 6 seat Electric golf car,48V Trojan battery golf buggy car
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3500x1200x1900mm |
| Ground clearance | 114mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
| Min.turning radius | 3.9m |
| Net weight | 630kg |
| Pay load | 360kg |
| Climbing capacity | 30% |
| Chassis | Steel chassis |
| Body cover | PP engineering plastic |
| Max.forward speed | 24km/h |
| Range | 60-80km |
Configuration
| Item | Description |
| Motor | ADC 48V 3.7KW |
| Controller | 48V 350A curtis controller |
| Battery | T-875 6*8V trojan battery |
| Charger | 48V 17A intelligent offboard charger |
| Item | Description |
| Transaxle |
Italy graziano axle |
| Brake System | Rear self-adjusting drum brake |
| Steering system | Dual self-adjusting rack & pinion |
| F/R suspension | Mcpherson independent spring suspension |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 205/50-10 tyre |
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
Product showroon
| ※ Advanced Disc Brake Technology |
| ※ Global Special LED Headlight |
| ※ Italy Graziano Transaxle |
| ※ Curtis Controller 48V 275A |
| ※ Special Design Battery Tray |
| ※ Rear View Mirror And Driver/Passenger Side Mirrors |
| ※ Automotive Safty Glass Windshield |
| ※ Deep Cup Holders |
| ※ USA Imported Unique E-KEY |
| ※ Eletromagnetic Brake Makes Driving More Safty |
| ※ 100% Waterproof accelerator |
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
