Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Blue Or Do On Pantone Number |
Roof Color: |
White,black And White |
Seat: |
2 Person |
Motor: |
3.7KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery 48V |
Transaxle: |
Italy Graziano Axle |
Battery: |
Trojan Battery |
Chassis: |
Aluminum Chassis |
Range: |
80-100KM |
Body Color: |
Blue Or Do On Pantone Number |
Roof Color: |
White,black And White |
Seat: |
2 Person |
Motor: |
3.7KW |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery 48V |
Transaxle: |
Italy Graziano Axle |
Battery: |
Trojan Battery |
Chassis: |
Aluminum Chassis |
Range: |
80-100KM |

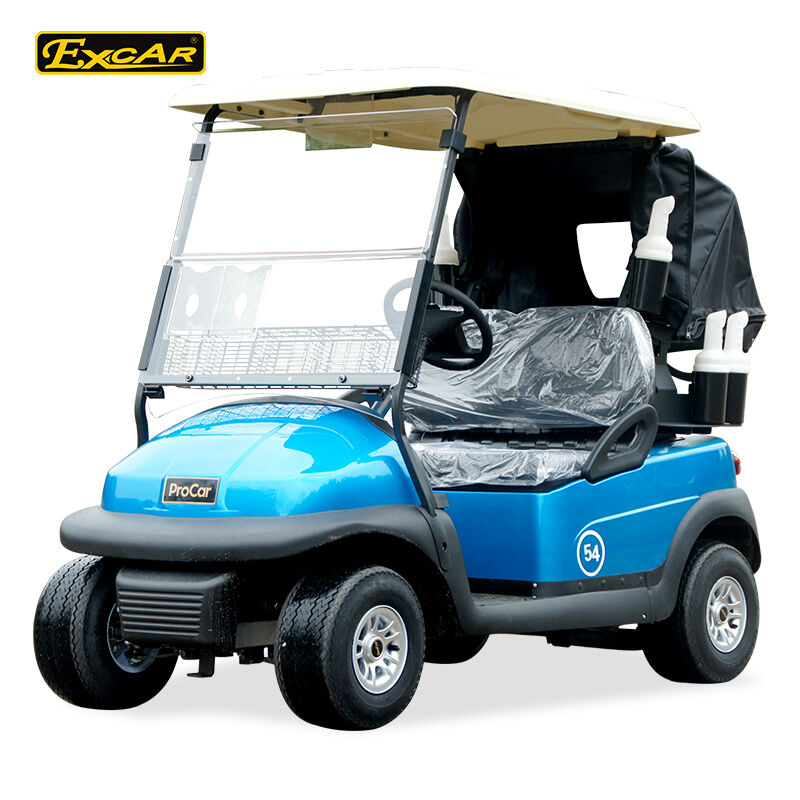

A1S2 6*8V battery GRAZIANO Electric Golf Car With Custom Bages & Car Cover
The main performance and design parameters are as follows:
| No | item | unit | Design value | |
| 1 | Rated load(including driver) | person | 2 | |
| 2 | Maximum speed | No load | km/h | 23 |
| Full load | 18 | |||
| 3 | Vehicle weight | kg | 430 | |
| Vehicle load | 360 | |||
| 4 | Dimension | mm | 2700*1200*1900 | |
| 5 | Minimum ground clearance | No load | 124 | |
| Full load | 120 | |||
| 7 | Wheelbase | Left | 1670 | |
| Right | 1670 | |||
| 8 | Wheelbase | Front | 860 | |
| Rear | 970 | |||
| 9 | Ground clearance | 124 | ||
| 10 | Min.turning radius | m | 2.9 | |
| 11 | Approach angle | ( ° ) | 18 | |
| Passing angle | 18 | |||
| Departure angle | 20 | |||
| 12 | Braking distance(no load/full load) | m | 5.0/6.0 | |
| 13 | Maximum driving slope | % | 18 | |
| 14 | Maximum grade ability | % | 25 | |
| 15 | Motor rated power | kW | 3.7 | |
| 16 | Lowest point on upper surface of passenger seat (H point) | mm | 800 | |
| 17 | Wheel number of shuttle bus | unit | 4 | |
| 18 | Range | km | 80-100 | |
| ※ Advanced Disc Brake Technology |
| ※ Global Special LED Headlight |
| ※ Italy Graziano Transaxle |
| ※ Curtis Controller 48V 275A |
| ※ Special Design Battery Tray |
| ※ Rear View Mirror And Driver/Passenger Side Mirrors |
| ※ Automotive Safty Glass Windshield |
| ※ Deep Cup Holders |
| ※ USA Imported Unique E-KEY |
| ※ Eletromagnetic Brake Makes Driving More Safty |
| ※ 100% Waterproof accelerator |
Color Options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipmen
