Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Can Be Customized |
Seat Color: |
White,black And White |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery |
Transaxle: |
Italy Graziano Axle |
Max.Forward Speed: |
25km/h |
Body Color: |
Can Be Customized |
Seat Color: |
White,black And White |
Controller: |
Curties Controller 48V 275A |
Batteries: |
Trojan Battery |
Transaxle: |
Italy Graziano Axle |
Max.Forward Speed: |
25km/h |

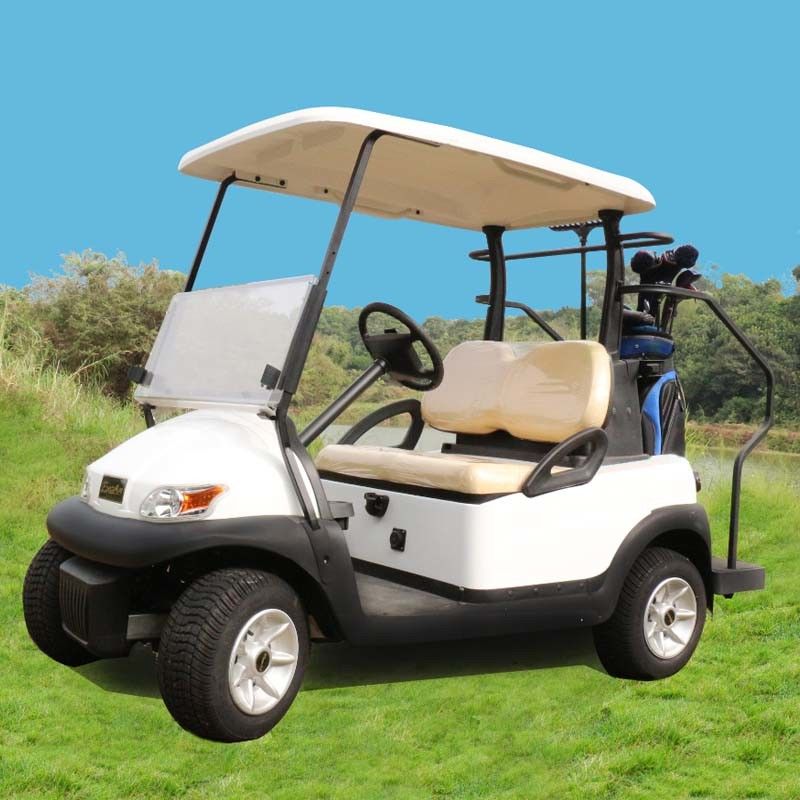

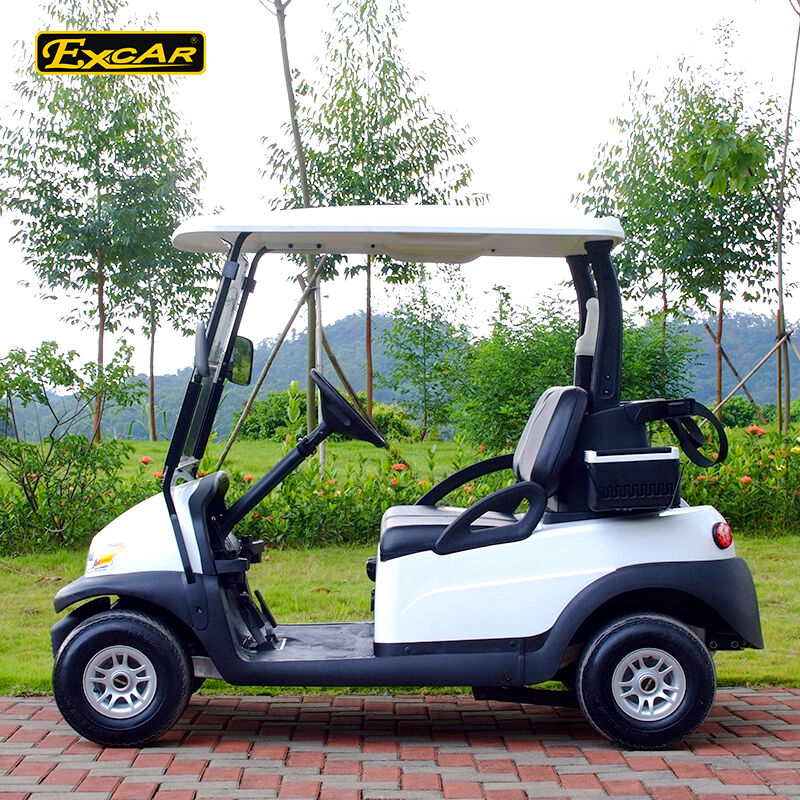

Pearlized White Color Excar 48V Electric Golf Car Aluminum Chassis Electric Golf Car
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited | ADC brand Separately excited |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle | Italian GRAZIANO axle |
| Charger | High Frequency onboard charger | High Frequency onboard charger |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 360kgs | 360kgs |
| Min.turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 2641x1219x1727mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
