Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S4
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: Negotiable
Origin: |
Dongguan Guangdong China |
Model: |
A1S4 |
Specification: |

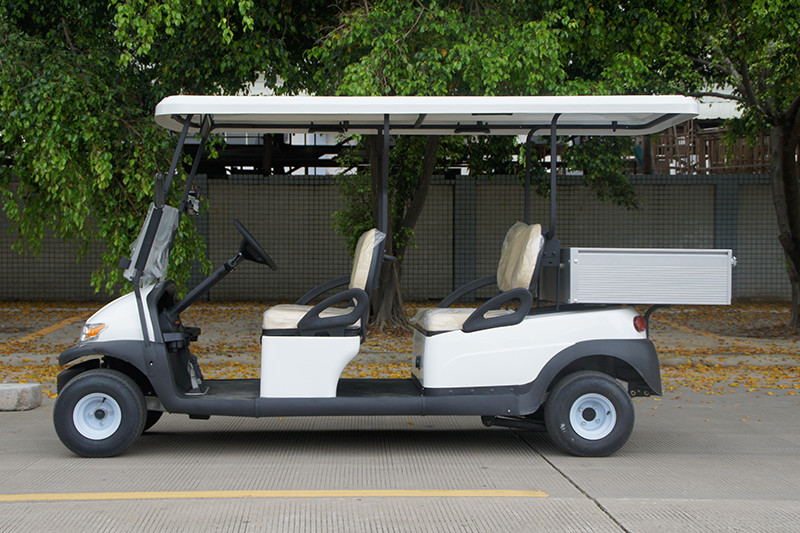

48V Electric Golf Cart |
Power Fuel: |
Electric |
Gradeability: |
20-30% |
Color: |
Any Color Available |
Transport Package: |
Wood Or Steel Via LCL Or FCL |
Suitable For: |
Golf Course, Villa, Holiday Village, Tourist Area |
Origin: |
Dongguan Guangdong China |
Model: |
A1S4 |
Specification: |
48V Electric Golf Cart |
Power Fuel: |
Electric |
Gradeability: |
20-30% |
Color: |
Any Color Available |
Transport Package: |
Wood Or Steel Via LCL Or FCL |
Suitable For: |
Golf Course, Villa, Holiday Village, Tourist Area |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3175x1219x1727mm |
| Ground clearance | 114mm |
| Wheelbase | 2490mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 4 | 4 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 3.9m | 3.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Electric System
| Item | Description |
| Lights | 48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) | Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock |
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Specification
1. Type sofa chair, comfortable
2. Efficient Italy graziano driving axle
3. FR/disc RR/drum, safety golf cart’s higher driving ability
4. Advanced Disc Brake Technology
5. USA Imported Unique E-KEY
6. 100% Waterproof accelerator
7. Special Design Battery Tray

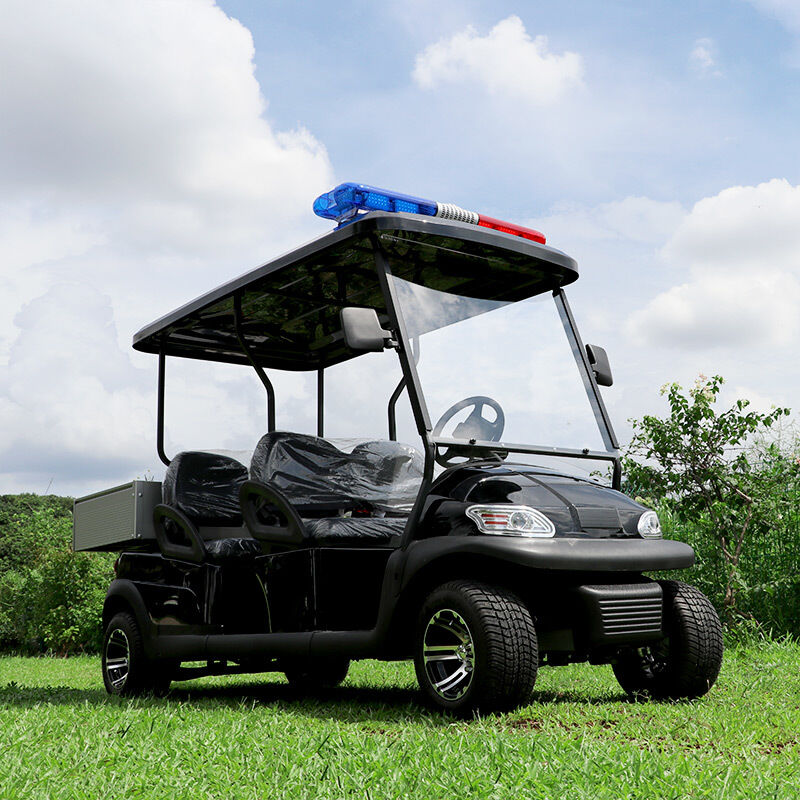

8. Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
