Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE/EEC
Model Number: M1S2
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Negotiate
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Model NO.: |
M1S2 |
Power Fuel: |
Electric |
Power: |
3700W |
Maximum Speed: |
20-30 Km/h |
Gradeability: |
20-30% |
Transaxle:: |
Italy Graziano Axle 12:1 |
Warranty:: |
2 Years |
Charging Time:: |
8-10 Hours |
Battery:: |
Trojan Battery |
Endurance: |
60-80KM |
Model NO.: |
M1S2 |
Power Fuel: |
Electric |
Power: |
3700W |
Maximum Speed: |
20-30 Km/h |
Gradeability: |
20-30% |
Transaxle:: |
Italy Graziano Axle 12:1 |
Warranty:: |
2 Years |
Charging Time:: |
8-10 Hours |
Battery:: |
Trojan Battery |
Endurance: |
60-80KM |
| Configuration: | |||
| Battery | USA Trojan 6*8V T-875 | ||
| Power of Motor | 48V 3.7KW ADC Seperately excited motor | ||
| Controller | USA Curtis Controller 275Ah | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Charger | 48V 17A Intelligent Onbaord Charger | ||
| Chassis Configuration: | |||
| Transaxle | Italy Graziano axle 12:1 | ||
| Front/Rear Suspension | MCPHERSON Independent Spring Suspension | ||
| Steering System | Dual Self-Adjusting "Rack&Pinion" Steetring | ||
| Brake System | Rear Self-Adjusting Drum Brake | ||
| Tyre | 215/35-12 Tyre | ||
| Performance | |||
| Passengers | 2 Person | Chassis | Aluminum |
| Max Speed | 25 km/h | Wheelbase | 1670mm |
| Range | 80-100km | Front Wheel Tread | 900mm |
| Brake Range | ≤3m | Rear Wheel Tread | 1000mm |
| Max Noise | <50db | Body cover | PP engineering plastic |
| Net Weight | 430kgs | Dimension | 2380*1200*1900mm |
| Load Weight | 360kgs | Climbing capacity | 30% |
| Turning Radius | 2.9m | Ground Clearance | 124mm |

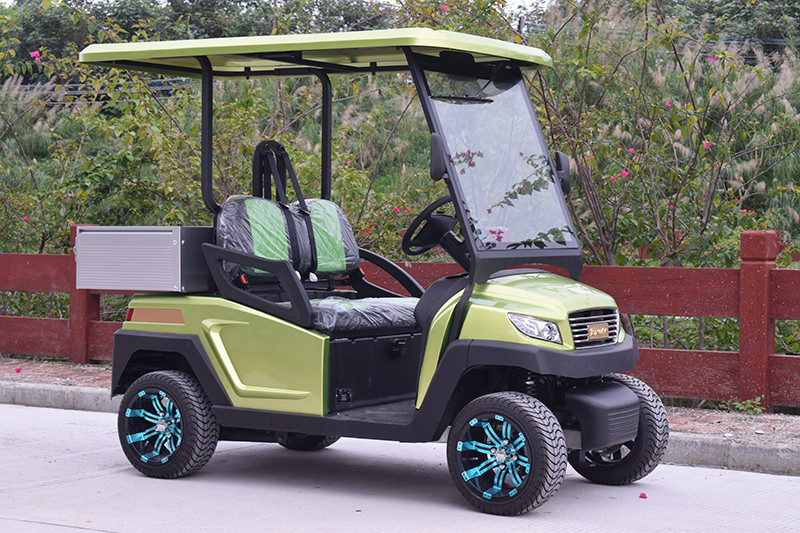

EXCAR 2 Passenger Electric Golf Buggy 48V 3.7KW
Our golf cart has the same parts with Club Car,so the warranty can be gurantee,details parts listed as below:
| ~ Advanced Disc Brake Technology | |||
| ~ Global Special LED Headlight | |||
| ~ Italy Graziano Transaxle | |||
| ~ Curtis Controller 48V 275A | |||
| ~Special Design Battery Tray | |||
| ~Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ~Automotive Safty Glass Windshield | |||
| ~Deep Cup Holders | |||
| ~USA Imported Unique E-KEY | |||
| ~ Eletromagnetic Brake Makes Driving More Safty | |||
| ~ 100% Waterproof accelerator |
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
