Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: CHINA
Brand Name: EXCAR
Certification: CE
Model Number: A1H2
Document: Excar catalog.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD4100-6000 per unit
Packaging Details: Full assembly or half assembly to load
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 10000 per year

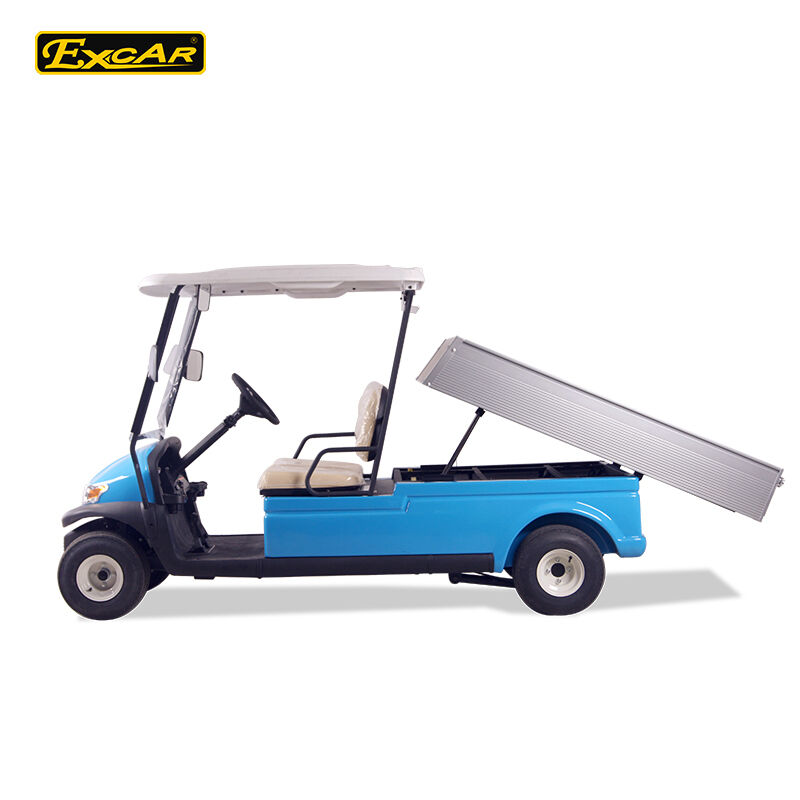

Excar model:A1H2
| DIMENSION | 3400×1200×1900 MM | PAYLOAD | 600 KG(Down)/ 300 KG(Up) |
| F/R TRACK | 860/970 MM | CIMBING CAPACITY (FULL LOAD) | 25% |
| WHEELBASE | 2260 MM | CHASSIS | STEEL CHASSIS |
| GROUND CLEARANCE | 114 MM | BODY PANEL | PP ENGINEERING PLASTIC |
| MIN. TURNING RADIUS | 3.6 M | MAX. FORWARD SPEED | 35 KM/H |
| NET WEIGHT | 560 KG | RANGE | 60-80KM |
| CONFIGURATION(AC system) | |||
| MOTOR | MOTOR 48V 5KW | BRAKE SYSTEM | REAR SELF-ADJUSTING DRUM BRAKE |
| CONTROLLER | CURTIS 48V 350A / 400A | STEERING SYSTEM | DUAL SELF-ADJUSTING RACK & PINION |
| BATTERY | LEAD-ACID OR LITHIUM BATTERY | F/R SUSPENSION | MAPHERSON INDEPENT SPRING SUSPENSION |
| CHARGER | 48V 17A / 25A REGULATOR | TYRE | 205/50-10 TYRE |
Product advantage
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake or Four Wheels Disc Brake with EM brake;
5. The system and accessories allow you to customize the cart to fit your request;
6. Smart steering system, easy to make forward and backward;
7. Rear box can be lifted.
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is about 15 days.
5.What kind of warranty Excar provides?
Usually one year warranty, which is not including the quick-wear parts.
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
If you need,we can arrange our technist person to fly to your area and help you solve it.
6.What's your payment term?
T /T 30% deposit and balance paid before shipment.
