Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: M1S2+2FF
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 200 units per month
Framework: |
Aluminium |
Body: |
All Engineering Plastic |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Steer System: |
Self-adjusting Rack & Pinion |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Endurance: |
70-90km |
Brand: |
EXCAR |
Framework: |
Aluminium |
Body: |
All Engineering Plastic |
Batteries: |
Lead-acid Wet Batteries USA Trojan Batteries |
Controller: |
USA Curtis Controller 48V 275A |
Steer System: |
Self-adjusting Rack & Pinion |
Front Suspension: |
Independent Spring Suspension |
Rear Suspension: |
Coil Spring Hydraulic Shock Absorber |
Motor: |
ADC Separately Excited 48V 3.7w |
Endurance: |
70-90km |
Brand: |
EXCAR |

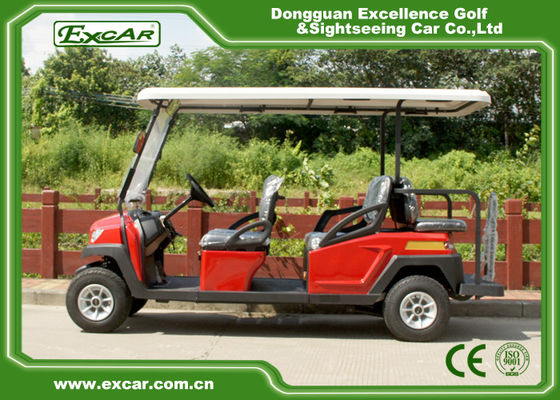

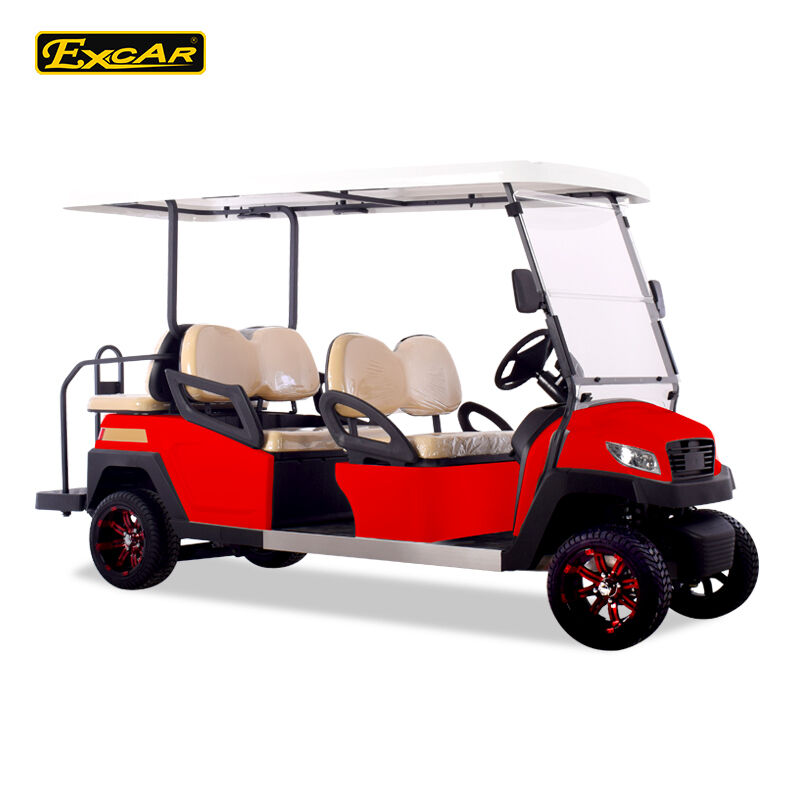

EXCAR 48V 3.7M Electric golf car Battery Powered 4 Seater buggy car for sale
Basic specification
| Item | Description |
| Overall dimensions (L x W x H) | 3500x1200x1900mm |
| Ground clearance | 150mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Key Components
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| system | DC system | AC system |
| Passenger Capacity | 6 | 6 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 60-80km | 80-100km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 300kgs | 300kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Option Accessories
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Features
Italy Graziano Transaxle
Unique E-KEY
Electromagnetic Brake Makes Driving More Safty
Special Design LED Headlight
Advanced Disc Brake Technology
Three-point Seat Belts
Rear View Mirror And Driver/Passenger Side Mirrors
Automotive Safty Glass Windshield
Deep Cup Holders
Comfortable,Contoured Seats
100% waterproof accelerator
Color Options:
※ Body Color: Any color can be customized.
※ Seat Color:Black or Beige
※ Roof Color:Black,White or Beige
