Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Pink Or Customized |
Roof Color: |
White,black Or Beige |
Seat Color: |
Beige Or Black |
Lead Time: |
7-15 Days |
Warranty: |
2 Years |
Dimension: |
2700*1200*1900MM |
F/R Track: |
860 / 970 MM |
Wheelbase: |
1670 MM |
Body Color: |
Pink Or Customized |
Roof Color: |
White,black Or Beige |
Seat Color: |
Beige Or Black |
Lead Time: |
7-15 Days |
Warranty: |
2 Years |
Dimension: |
2700*1200*1900MM |
F/R Track: |
860 / 970 MM |
Wheelbase: |
1670 MM |

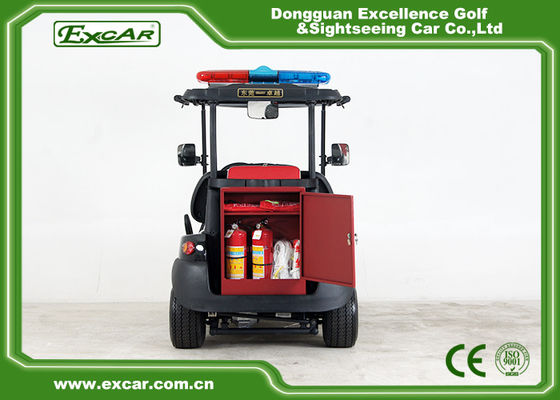

Excar black 48V 2 seater Trojan battery Electric golf Car with extinguisher fire truck
Our golf cart has the same parts with Club car,but some parts we use better then theirs.
Feather of golf cart as below:
※ Advanced Disc Brake Technology
※ Global Special LED Headlight
※ Italy Graziano Transaxle
※ Curtis Controller 48V 275A
※ Eletromagnetic Brake Makes Driving More Safty
※ 100% Waterproof accelerator
※ Type sofa chair, comfortable
※ FR/disc RR/drum, safety golf cart’s higher driving ability
※ Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 2641x1219x1727mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Specification
| Configuration | |||
| Battery | 6*8V 275AH Trojan T-875 | ||
| Power of Motor | 48V 3700W | ||
| Controller | American Curtis Electronics Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Transaxle | Italy Graziano axle | ||
| Charger | Intelligent Onbaord Charger | ||
| Chassis configuration | |||
| Front-Suspension | Independent Spring Front Suspension | ||
| Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
| Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
| Performance | |||
| Max Speed | 25 km/h | Chassis | Aluminum |
| Max Travel Distance | 80-100km | Wheelbase | 1670mm |
| Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50dB | Tires | 205/50-10 |
| Carrying Capacity | 600KG | Dimension | 2700*1200*1900mm |
| Turning Radius | 2900mm | Passengers | 2 Person |
| Net Weight | 430kg | Ground Clearance | 124mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
Color Option
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
Product Image
1, what's your warranty time?
Usually for 1 year
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order just 1 unit .
7,Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8,What's your payment term?
T/T 30% deposit and balance paid before shipment
9,How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Warranty
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date.
