Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: A1S2
Document: Excar catalog.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: 20' container or 40' container
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per year
Body Color: |
Pink Or Pantone Number |
Roof Color: |
White,black Or Beige |
Seat Color: |
Beige Or Black |
Lead Time: |
7-15 Days After Deposit Paid |
Warranty: |
2 Years Since The Day To Ship Out |
Logo: |
Excar Silver Logo Or Gold Logo |
Brand: |
EXCAR |
Motor: |
3.7KM AC Motor |
Range: |
60-80KM |
Body Color: |
Pink Or Pantone Number |
Roof Color: |
White,black Or Beige |
Seat Color: |
Beige Or Black |
Lead Time: |
7-15 Days After Deposit Paid |
Warranty: |
2 Years Since The Day To Ship Out |
Logo: |
Excar Silver Logo Or Gold Logo |
Brand: |
EXCAR |
Motor: |
3.7KM AC Motor |
Range: |
60-80KM |

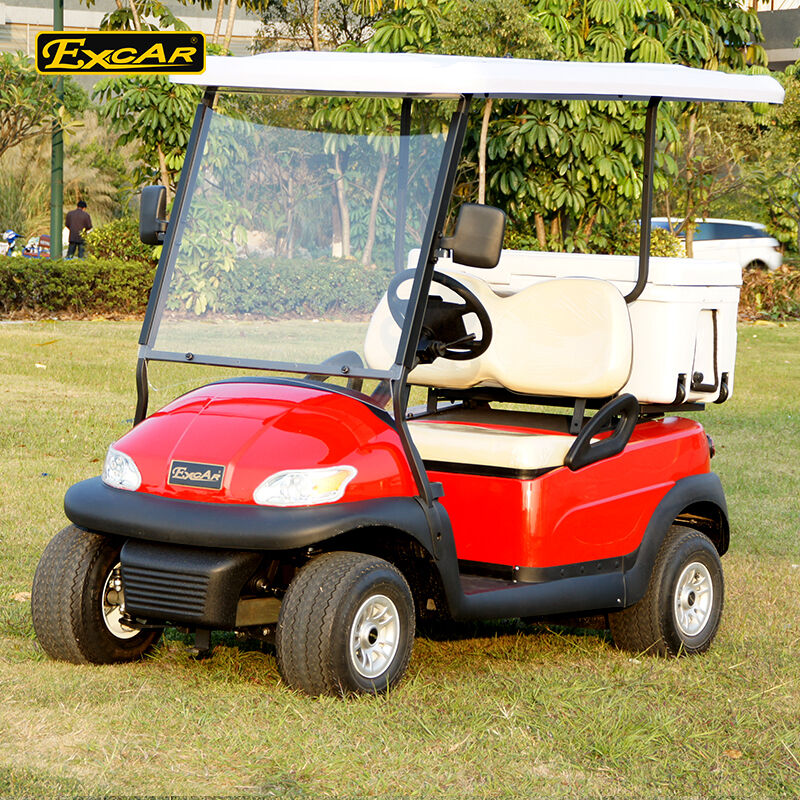

Red 3.7KM 48V 2 seater electric golf car with small ice box custom golf buggy
Our golf cart has the same parts with Club car,but some parts we use better then theirs.The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.
Feather of golf cart as below:
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Specification
| Configuration | |||
| Battery | 6*8V 275AH Trojan T-875 | ||
| Power of Motor | 48V 3700W | ||
| Controller | American Curtis Electronics Controller | ||
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | ||
| Transaxle | Italy Graziano axle | ||
| Charger | Intelligent Onbaord Charger | ||
| Chassis configuration | |||
| Front-Suspension | Independent Spring Front Suspension | ||
| Rear-Suspension | Spring Hydraulic Shock Absorbers | ||
| Steering | Dual Self Adjusting "Rack&Pinion" Steetring | ||
| Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | ||
| Performance | |||
| Max Speed | 25 km/h | Chassis | Aluminum |
| Max Travel Distance | 80-100km | Wheelbase | 1670mm |
| Slope Climbing Capacity | 30% | Front Wheel Tread | 860mm |
| Brake Range | ≤3m | Rear Wheel Tread | 970mm |
| Max Noise | <50dB | Tires | 205/50-10 |
| Carrying Capacity | 600KG | Dimension | 2700*1200*1900mm |
| Turning Radius | 2900mm | Passengers | 2 Person |
| Net Weight | 430kg | Ground Clearance | 124mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color Option
※ Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number
※ Seat Color:Black or Beige
※ Roof Color:Black,White or Beige
Product Image
1, what's your warranty time?
Usually for 1 year
2, What's the production time?
Normally for 7-15 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order just 1 unit .
7,Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8,What's your payment term?
T/T 30% deposit and balance paid before shipment
9,How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Application
Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
