Product Details:
Payment & Shipping Terms:
|
| Motor: | 3.7KW ADC Brand | Controller: | 350A USA Curties |
|---|---|---|---|
| Battery: | 48V Trojan Battery 6*8V | Charger: | 17A Regular |
| Transaxle: | Italy Graziano Axle | Tyre: | 205/50-10 Tyre |
| Brand: | EXCAR | Seat: | Soft And Supported By Plastic Board |
| F/R Track: | 860 / 970 MM | Dimension: | 3400*1200*1800 MM |
| High Light: | golf club car,4 seater golf car |
||

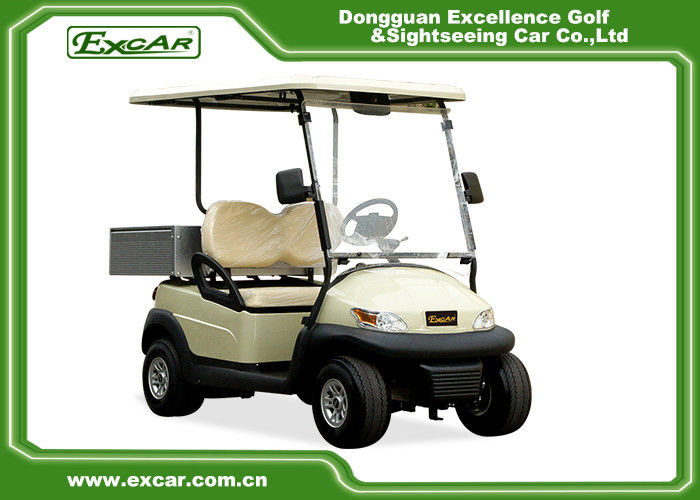

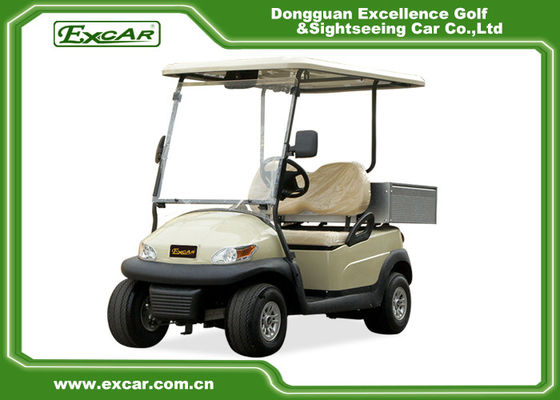

2 Seater AC Motor Electric Golf Car 48v Trojan Battery , Electric Hotel Buggy Car
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
Features & Benefits
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
3. Import main parts: US battery (From USA) and Transaxle (From Italy),Curtis Controller(From USA);
4. Brake system: Rear wheel Mechanical Drum Brake
5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;
6. Good hill climbing ability, the system allows you to customize the car to fit your course;
7. Smart steering system, easy to make forward and backward;
8. Good climbing ablity and can park easily on Hills;
9. Can be easily to be modified to Utility carts.
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 2 | 2 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 2921x1219x1727mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
| Cargo box dimension | 800*1100*280mm |
| Cargo box material | Aluminum |
Body and Frame
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Alloy wheel & USA Carlisle 18*8.5-8 6 layers |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 10 | 2-point seatbelt |
| 2 | Foldable windshield | 11 | Battery water refill system |
| 3 | Laminated windshield with wiper | 12 | Digital meter |
| 4 | Steel brush guard | 13 | EM brake |
| 5 | Front steel basket | 14 | Four wheel disc brake |
| 6 | Inner rear view mirror | 15 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | ||
| 8 | Enclosure | ||
| 9 | Sunshine cover |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2+SC | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3400*1200*1900 | 3400*1200*1200 | 2 units | 4units | 6units | 12units | |
