Home > products > Electric Golf Buggy > Elegant 6 Person Electric Golf Buggy

Elegant 6 Person Electric Golf Buggy

Product Details

Place of Origin: China

Brand Name: EXCAR

Certification: CE

Model Number: A1S6

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiate

Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.

Delivery Time: 7 days after received your deposit

Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T

Supply Ability: 300 units per month

Get Best Price
Product Details
Highlight:

golf cart buggy

,

club car golf buggy

,

6 Person Electric Golf Buggy

Transaxle:
Italy Graziano Axle 12:1
Warranty:
1 Year
Body Color:
Based On Panton Number
Chassis:
Aluminum
Climbling:
30%
Pay Load:
360kg
Transaxle:
Italy Graziano Axle 12:1
Warranty:
1 Year
Body Color:
Based On Panton Number
Chassis:
Aluminum
Climbling:
30%
Pay Load:
360kg
Product Description

Excar Elegant 6 Person Electric Golf Cart CE Approved 3.7KW ADC Motor Electric Golf Carts



Basic specification



Golf cart had become one of our major products in the recent years.The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.



1. Global Special LED Headlight

2. Efficient Italy graziano driving axle

3.FR/disc RR/drum, safety golf cart’s higher driving ability

4.Advanced Disc Brake Technology

5.USA Imported Unique E-KEY

6.100% Waterproof accelerator

7.Golf cart, sightseeing car, classic car, patrol car, housekeeping car, cargo car, utility car, security series

8.Special Design Battery Tray

9.Deep Cup Holders



Feather of golf cart:



Battery 6*8V 275AH Trojan T-875
Power of Motor 48V 3700W
Controller American Curtis Electronics Controller
Accelerator Adjustable Inductive Accelerator Continuously Variable Speed System
Transaxle Italy Graziano axle
Charger Intelligent Onbaord Charger
Chassis configuration
Front-Suspension Independent Spring Front Suspension
Rear-Suspension Spring Hydraulic Shock Absorbers
Steering Dual Self Adjusting "Rack&Pinion" Steetring
Brakes Rear Wheel Mechanical Drum Brake and Regeneration Brake
Performance
Max Speed 25 km/h Chassis Aluminum
Max Travel Distance 70-90km Wheelbase 2490mm
Slope Climbing Capacity 30% Front Wheel Tread 860mm
Brake Range ≤3m Rear Wheel Tread 970mm
Max Noise <50dB Tires 205/50-10
Carrying Capacity 600KG Dimension 3500*1200*1900mm
Turning Radius 2900mm Passengers 6 Person
Net Weight 630kg Ground Clearance 124mm





Performance



system DC system AC system
Passenger Capacity 6 6
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 360kgs 360kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m





Option Accessories



Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer





Color options

Elegant 6 Person Electric Golf Buggy 0

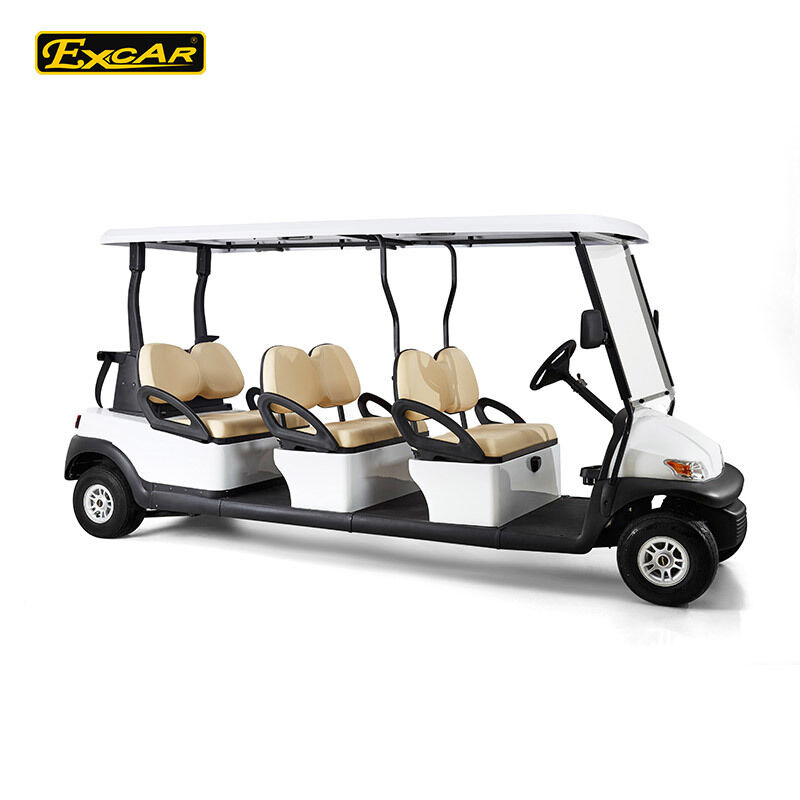

Product Image



Elegant 6 Person Electric Golf Buggy 1

Elegant 6 Person Electric Golf Buggy 2



FAQ



1.Can you customize the cart according to our special request?

   Yes,we can customize the cart according to your request unless some complex parts we hard to make.



2.What is your MOQ?

   You can order just 1 unit,if your order qty is big then we can give you some discount



3.Can we put the Logo we designed on the cart?

   Yes, you can put your own Logo on the cart but need to send us your logo artwork.



4.What is your lead time for production?

   The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days



5.What kind of warranty Excar provides?

   Non-artificial damaged products,shifting for a year or one year repair.

   Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.



6.What's your payment term?

   /T 30% deposit and balance paid before shipment





Application



*  Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
