FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair

FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair
FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair

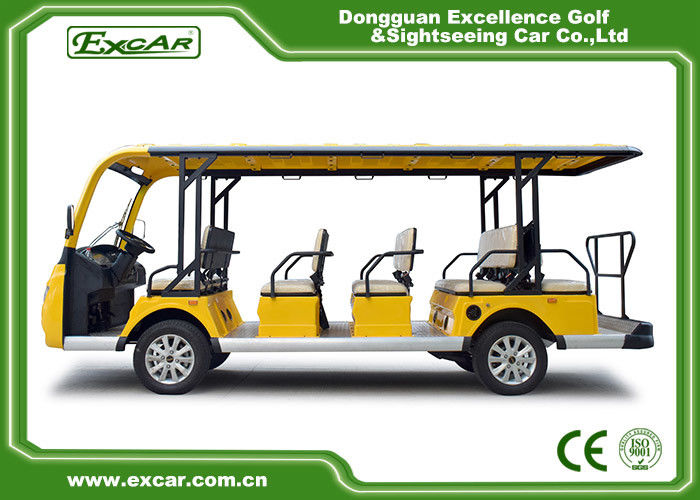

Large Image :  FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair

Product Details:

Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: D-G14

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40' contianer
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Detailed Product Description
Roof Color: Blue,White Or Beige Seat Color: White,black Or Beige
Warranty: 1 Year Controller: USA Curties Controller 350A
Brand: EXCAR Chassis: Aluminum Material
Climbing Capacity: 25% Motor: KDS 72V 7.5KM
High Light:

electric tour bus

,

electric shuttle bus

EXCAR yellow 14 Seater electric sightseeing bus tour bus 72V new electric bus



Feather of electric cart:

1 Type sofa chair, comfortable

2 Efficient special driving axle

3 FR/disc RR/drum, safey



Performance



Item Description
system DC system AC system
Passenger Capacity 14 14
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 50-70km 60-80km
Charging time 8-10 hours 8-10 hours
Max.loading weight 510kgs 510kgs
Min.turning radius 5.1m 5.1m
Max. movement after brake at speed of 20km/h ≤4m ≤4m





* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.





Dimensions



Item Description
Overall dimensions (L x W x H) 5300x1500x2000mm
Ground clearance 150mm
Wheelbase 2850mm
Front wheel tread (mm) 1210mm
Rear wheel tread (mm) 1200mm





Option Accessories



To increase the sales value of our golf cart, we also provide many optional accessories.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer



Color options



Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

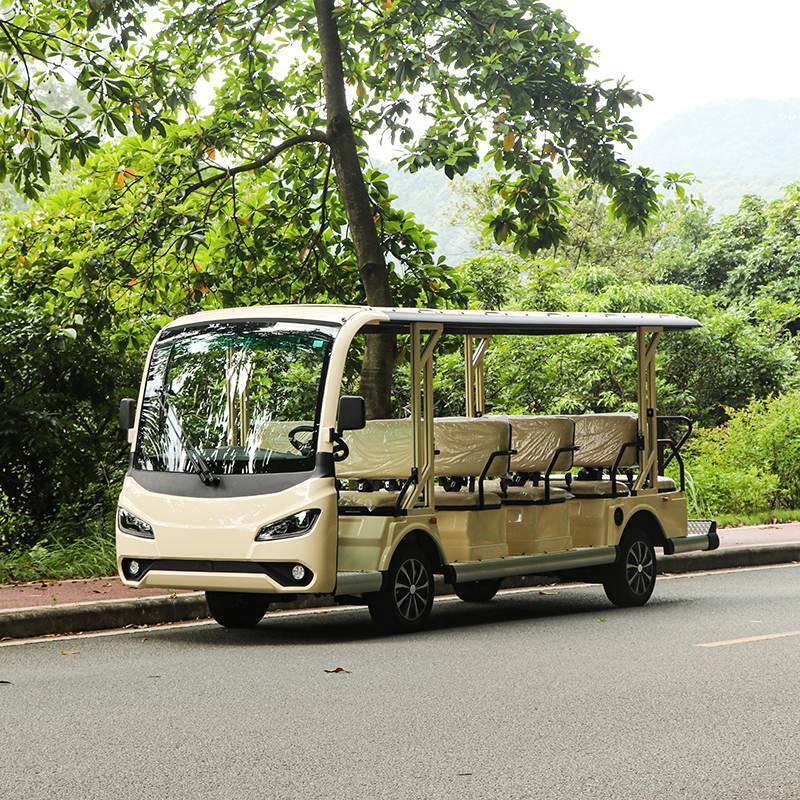

Product Image





FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair 0FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair 1FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair 2FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair 3

FR / disc RR / Drum 14 Seater Electric Sightseeing Bus With Sofa Chair 4







FAQ


1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.

2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.

3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.

4.What is your lead time for production?
The typical lead time of our cart is 15 days.

5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair


6.What's your payment term?

T /T 30% deposit and balance paid before shipment
