Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: A1S8+3
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Delivery Time: 7 days after received your deposit
Payment Terms: D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability: 300 units per month
Transaxle: |
Italy Graziano Axle 12:1 |
Warranty: |
1 Year |
Body Color: |
Based On Panton Number |
Chassis: |
Aluminum Material |
Climbling: |
30% |
Passengers: |
11 |
Roof Color: |
White,Black Or Beige |
Seat: |
11 Seater |
Battery: |
Trojan Battery |
Range: |
60-80KM |
Transaxle: |
Italy Graziano Axle 12:1 |
Warranty: |
1 Year |
Body Color: |
Based On Panton Number |
Chassis: |
Aluminum Material |
Climbling: |
30% |
Passengers: |
11 |
Roof Color: |
White,Black Or Beige |
Seat: |
11 Seater |
Battery: |
Trojan Battery |
Range: |
60-80KM |

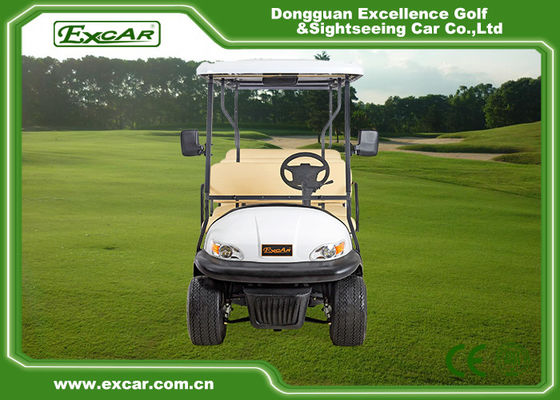

White 11 seater trojan battery golf cart electric sightseeing bus china mini tour bus
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 11 | 11 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 510kgs | 510kgs |
| Min. turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 4292x1219x1828mm |
| Ground clearance | 114mm |
| Wheelbase | 3300mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and Frame
| Item | Description |
| Frame & Chassis | Steel alloy framework |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
| Digital Meter (optional) |
Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock
|
Steering & suspersion
| Item | Description |
| Steering System |
Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10 tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |

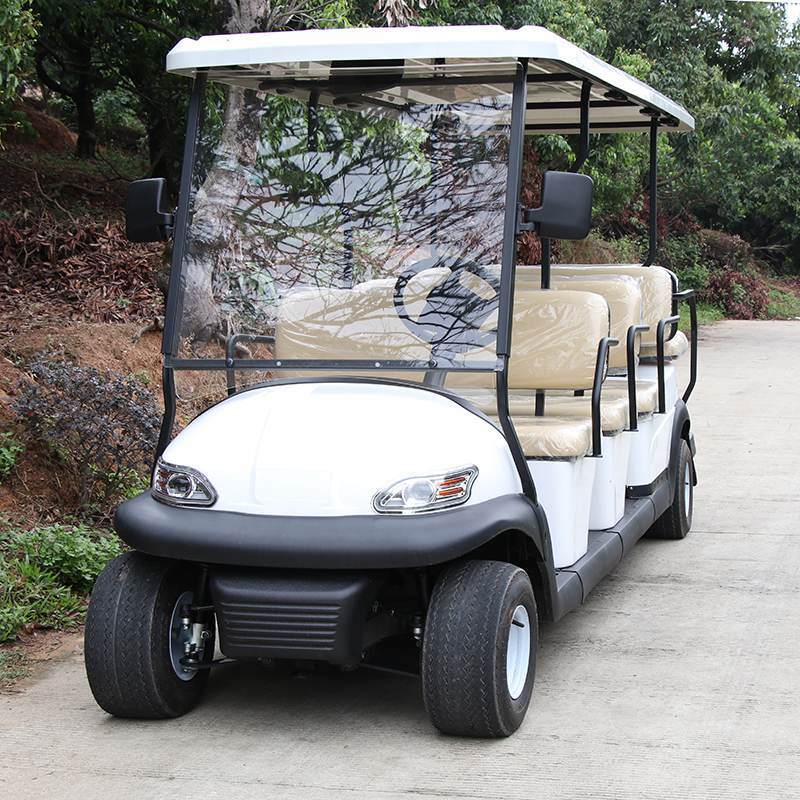

Product Image
Warranty
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date.
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit,if your order qty is big then we can give you some discount
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart but need to send us your logo artwork.
4.What is your lead time for production?
The typical lead time of our cart is 7-15 days.For some cargo cart,maybe need 20 days
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
