Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: D-G11
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40' contianer
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Roof Color: |
Silver,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 275A |
Transaxle: |
Italy Graziano Axle 12:1 |
Brand: |
EXCAR |
Dimension: |
4500*1500*200 MM |
Chassis: |
Aluminum Material |
Battery: |
Trojan Battery |
Motor: |
7.5KW |
Roof Color: |
Silver,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 275A |
Transaxle: |
Italy Graziano Axle 12:1 |
Brand: |
EXCAR |
Dimension: |
4500*1500*200 MM |
Chassis: |
Aluminum Material |
Battery: |
Trojan Battery |
Motor: |
7.5KW |

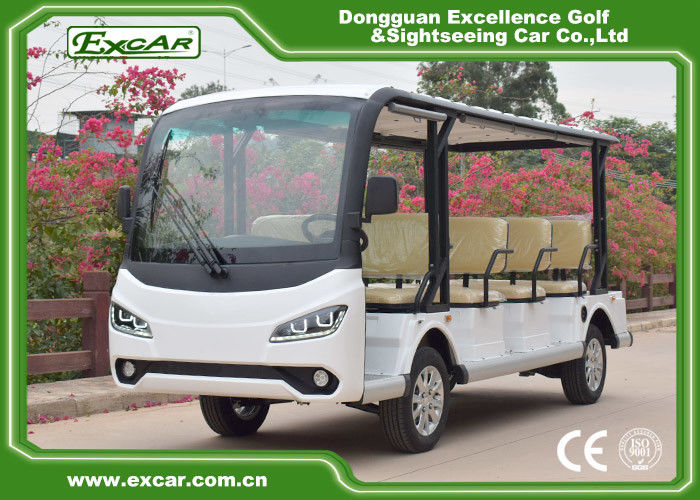

Silver 11 Seater Electric Sightseeing bus 7.5KW KDS Motor City Bus
This electric vehicle G1S8 is used for carrying passengers and goods in scenic spots and large leisure venues.
| ※ Advanced Disc Brake Technology | |||
| ※ Global Special LED Headlight | |||
| ※ Italy Graziano Transaxle | |||
| ※ Curtis Controller 48V 275A | |||
| ※ Special Design Battery Tray | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ USA Imported Unique E-KEY | |||
| ※ Eletromagnetic Brake Makes Driving More Safty | |||
| ※ 100% Waterproof accelerator |
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,6V*12pcs, imported from USA directly | Trojan battery, T875,6V*12pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Product Image
FAQ
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date
