Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: G1S8
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40' contianer
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Roof Color: |
Blue,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 300A |
Transaxle: |
Italy Graziano Axle 18:1 |
Brand: |
EXCAR |
Dimension: |
4500*1500*2000 MM |
Chassis: |
High Strength Steel Alloy Frame |
Battery: |
Trojan Battery |
Motor: |
7.5KW |
Roof Color: |
Blue,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 300A |
Transaxle: |
Italy Graziano Axle 18:1 |
Brand: |
EXCAR |
Dimension: |
4500*1500*2000 MM |
Chassis: |
High Strength Steel Alloy Frame |
Battery: |
Trojan Battery |
Motor: |
7.5KW |

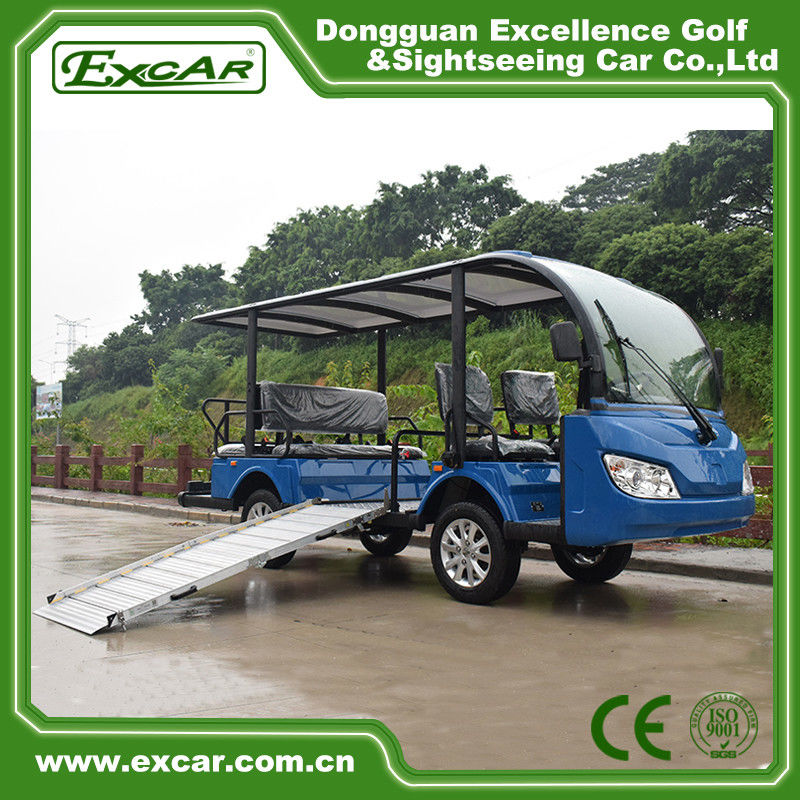

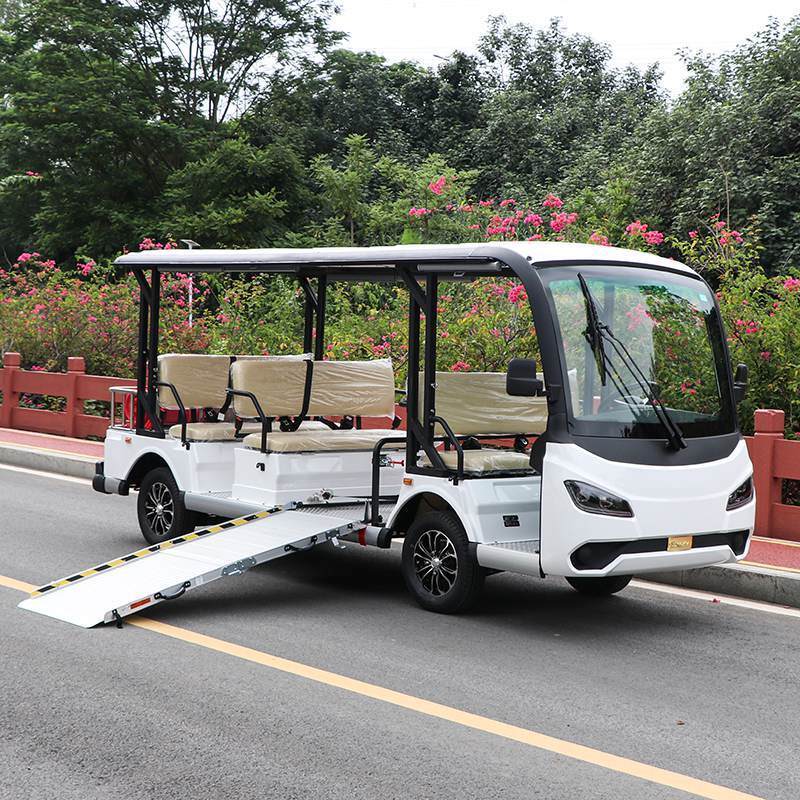

8 Seater disabled bus Electric sightseeing bus with 12*6v trojan battery
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
The main performance and design parameters are as follows:
| No | item | unit | Design value | |
| 1 | Rated load(including driver) | person | 8 | |
| 2 | Maximum speed | No load | km/h | 40 |
| Full load | 38 | |||
| 3 | Vehicle weight | kg | 980 | |
| Vehicle load | 800 | |||
| 4 | Dimension | mm | 4500*1500*2000 | |
| 5 | wheelchair ramp | 1800*750*30 | ||
| wheelchair ramp materials | aluminium alloy sections | |||
| 6 | Minimum ground clearance | No load | 170 | |
| Full load | 150 | |||
| 7 | Wheelbase | Left | 2100 | |
| Right | 2100 | |||
| 8 | Wheelbase | Front | 1210 | |
| Rear | 1200 | |||
| 9 | Ground clearance | 170 | ||
| 10 | Min.turning radius | m | 4.3 | |
| 11 | Approach angle | ( ° ) | 18 | |
| Passing angle | 18 | |||
| Departure angle | 20 | |||
| 12 | Braking distance(no load/full load) | m | 5.0/6.0 | |
| 13 | Maximum driving slope | % | 18 | |
| 14 | Maximum grade ability | % | 25 | |
| 15 | Motor rated power | kW | 7.5 | |
| 16 | Lowest point on upper surface of passenger seat (H point) | mm | 800 | |
| 17 | Wheel number of shuttle bus | unit | 4 | |
| 18 | Range | km | 60-80 | |
Main components, safety protection and protective devices
| No | item | Description | |
| 1 | Motor | Model / serial number | YDQ7.5-4-5680/181126031 |
| Insulation grade / Exciter type | H/AC | ||
| Level of protection | 1P54 | ||
| Rated power / Rated speed | 7.5kW/5100r/min | ||
| Rated current / Rated Voltage | 141A/72V | ||
| manufacturer | Kinetek DeSheng(Shunde,Foshan)Motor Co.,Ltd | ||
| 2 | Lithium battery | Rated current / Rated Voltage | 160Ah/72V |
| Model / manufacturer | EX-768160/Dongguan new road power Technology Co. , LTD | ||
| 3 | Controller | Model / serial number | 123E-6322/1234E-6322-012430 |
| Rated voltage/rated current | 60-72V/300A | ||
| manufacturer | Curtis Instruments (China) Co., Ltd | ||
| 4 | Charger | type | on-board charger |
| Rated voltage/rated current | 72V /30A | ||
| Model/manufacturer | CH4100/Zhuhai Enpower Electric Co.,Ltd. | ||
| 5 | Front suspension | Type | McPherson independent suspension |
| 6 | Rear suspension | Type | Spiral spring hydraulic shock absorbing structure |
| rear axle | Heavy duty axle with differential gear | ||
| Rear axle reduction ratio | 18 | ||
| Manufacturer | Dongguan lingyue transmission co. Ltd | ||
| 7 | Brake | Brake type | Double pipe with hydraulic brake system |
| Model /Manufacturer | N300/Zhejiang Asia-Pacific Mechanical & Electronic Co., Ltd. | ||
| 8 | Tyre | Front tire pressure / Rear tire pressure | 0.35Mpa/0.35Mpa |
| Model / Manufacturer | 175/70R14/Tianjin Wanda Tyre Group Co Ltd | ||
| 9 | safety belt | model / Manufacturer | 18060501/Kunshan jialiya auto parts co. LTD |
| 9 | Body cover | Type | ABS plastic |
| 11 | windshield | Model /Material/ Manufacturer |
43R-001874/laminated glass/Xinyi Glass Engineering (Dongguan) Co., Ltd
|
Product Image
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date
