Product Details:
Payment & Shipping Terms:
|
Roof Color: | White,black Or Beige | Seat Color: | White,black Or Beige |
---|---|---|---|
Warranty: | 1 Year | Controller: | USA Curties Controller 350A |
Climbing Capacity: | 25% | Dimension: | 5300*1500*2000 MM |
Brand: | EXCAR | Motor: | KDS 72V 7.5KW |
Battery: | Trojan Battery | ||
High Light: | electric tour bus,electric shuttle bus |

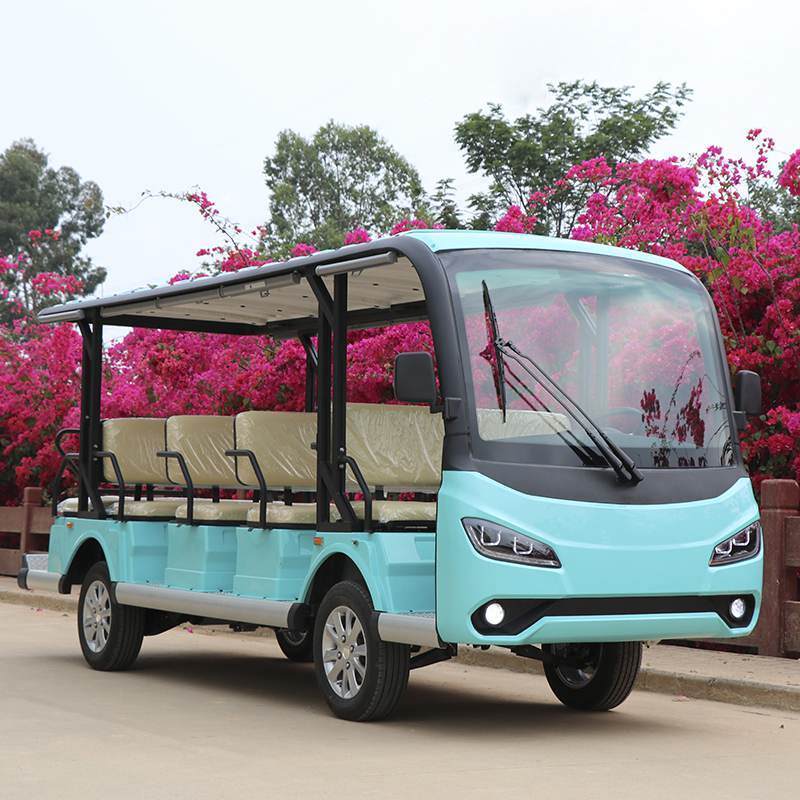

7.5KM Motor 72V Trojan battery 14 Seat electric sightseeing bus mini tour bus
Key Components
Item | Description | |
System | DC system | AC system |
Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
Battery | Trojan battery, T875,6V*12pcs, imported from USA directly | Trojan battery, T875,6V*12pcs, imported from USA directly |
Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
Item | Description | |
system | DC system | AC system |
Passenger Capacity | 14 | 14 |
Climbing capacity(full load) | 20% | 25% |
Max. forward speed | 23km/h | 45km/h |
Endurance mileage | 50-70km | 60-80km |
Charging time | 8-10 hours | 8-10 hours |
Max.loading weight | 510kgs | 510kgs |
Min.turning radius | 5.1m | 5.1m |
Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
* 2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
Item | Description |
Overall dimensions (L x W x H) | 5300x1500x2000mm |
Ground clearance | 150mm |
Wheelbase | 2850mm |
Front wheel tread (mm) | 1210mm |
Rear wheel tread (mm) | 1200mm |
Color options
Body colour | White | Grey | Sky blue |
Dark blue | Red | Wine red | |
Green | Dark green | Yellow | |
Purple | Champagne | Black | |
These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
Seat & Roof colour | Black | Beige | White |
Product Image
FAQ
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
