Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: D-G14
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40'
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Roof Color: |
Blue,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 350A |
Brand: |
EXCAR |
Chassis: |
Aluminum Material |
Climbing Capacity: |
25% |
Motor: |
KDS 72V 7.5KM |
Body Color: |
Green Black |
Range: |
60-80KM |
Roof Color: |
Blue,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 350A |
Brand: |
EXCAR |
Chassis: |
Aluminum Material |
Climbing Capacity: |
25% |
Motor: |
KDS 72V 7.5KM |
Body Color: |
Green Black |
Range: |
60-80KM |
72V Green Black 14 Seater electric sightseeing bus tour bus electric car china electric bus
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |
Details parts listed as below:
| ※ Advanced Disc Brake Technology | |||
| ※ Global Special LED Headlight | |||
| ※ Italy Graziano Transaxle | |||
| ※ Curtis Controller 48V 275A | |||
| ※ Special Design Battery Tray | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ USA Imported Unique E-KEY | |||
| ※ Eletromagnetic Brake Makes Driving More Safty | |||
| ※ 100% Waterproof accelerator |
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,6V*12pcs, imported from USA directly | Trojan battery, T875,6V*12pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Color options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |

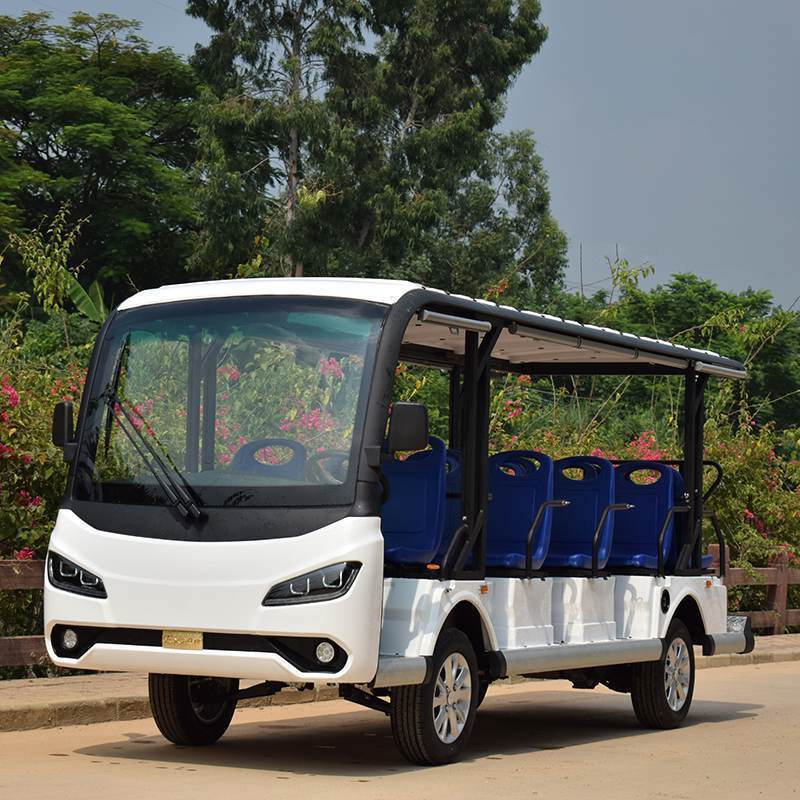

Product Image
