Dongguan Excar Electric Vehicle Co., Ltd salescn@excar.com.cn 86--13546943585
Product Details
Place of Origin: China
Brand Name: EXCAR
Certification: CE
Model Number: D-G14
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: Negotiate
Packaging Details: 20' container,40'
Delivery Time: 7-15 working days
Supply Ability: 300pcs per month
Roof Color: |
Blue,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 350A |
Brand: |
EXCAR |
Chassis: |
Aluminum Material |
Climbing Capacity: |
25% |
Motor: |
KDS 72V 7.5KM |
Body Color: |
Green Black |
Range: |
60-80KM |
Roof Color: |
Blue,White Or Beige |
Seat Color: |
White,black Or Beige |
Warranty: |
1 Year |
Controller: |
USA Curties Controller 350A |
Brand: |
EXCAR |
Chassis: |
Aluminum Material |
Climbing Capacity: |
25% |
Motor: |
KDS 72V 7.5KM |
Body Color: |
Green Black |
Range: |
60-80KM |
EXCAR Green Black 14 Seats electric sightseeing bus tour bus electric car china electric bus
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
Details parts listed as below:
| ※ Advanced Disc Brake Technology | |||
| ※ Global Special LED Headlight | |||
| ※ Italy Graziano Transaxle | |||
| ※ Curtis Controller 48V 275A | |||
| ※ Special Design Battery Tray | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ USA Imported Unique E-KEY | |||
| ※ Eletromagnetic Brake Makes Driving More Safty | |||
| ※ 100% Waterproof accelerator |
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,6V*12pcs, imported from USA directly | Trojan battery, T875,6V*12pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Color options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |
Steering & suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel & Tyre | Aluminum wheel & USA Carlisle 18*8.5-8 6 layers |

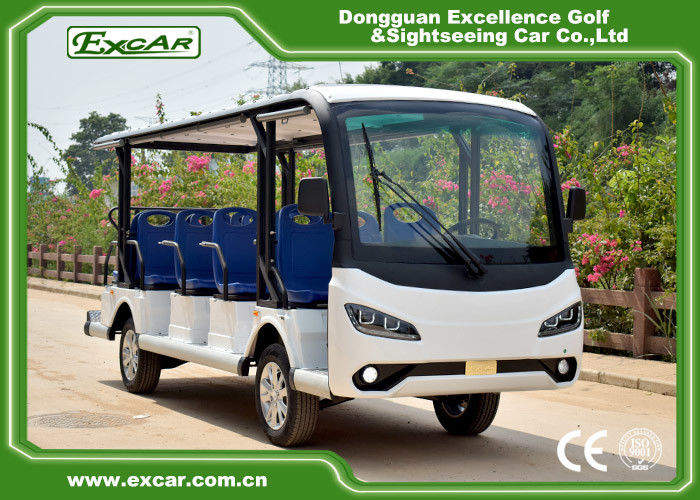

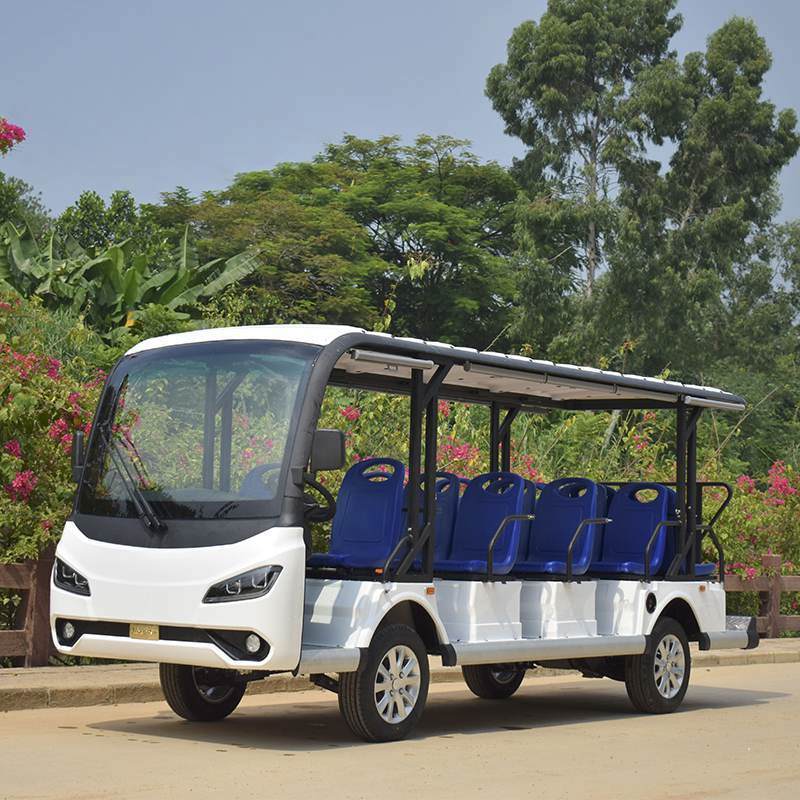

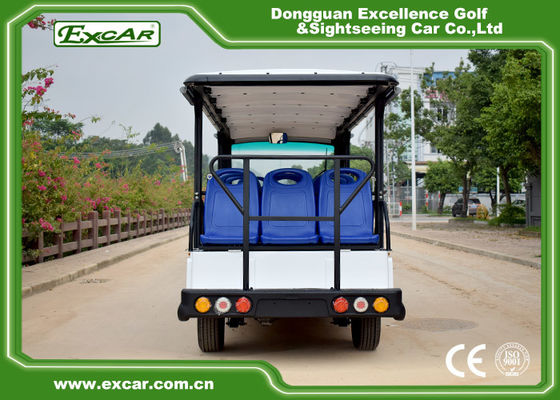

Product Image
