Product Details:
Payment & Shipping Terms:
|
| Roof Color: | Blue,White Or Beige | Seat Color: | White,black Or Beige |
|---|---|---|---|
| Warranty: | 1 Year | Controller: | USA Curties Controller 350A |
| Brand: | EXCAR | Chassis: | Aluminum Material |
| Climbing Capacity: | 25% | Motor: | KDS 72V 7.5KM |
| Body Color: | Green Black | Range: | 60-80KM |
| High Light: | electric tour bus,electric shuttle bus |
||
72V EXCAR Green Black 14 Seater electric sightseeing bus tour bus electric car china electric bus
Golf cart had become one of our major products in the recent years. In today when an environmental problem is increasingly serious,it is becoming more popularby the day.
Details parts listed as below:
| ※ Advanced Disc Brake Technology | |||
| ※ Global Special LED Headlight | |||
| ※ Italy Graziano Transaxle | |||
| ※ Curtis Controller 48V 275A | |||
| ※ Special Design Battery Tray | |||
| ※ Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ※ Automotive Safty Glass Windshield | |||
| ※ Deep Cup Holders | |||
| ※ USA Imported Unique E-KEY | |||
| ※ Eletromagnetic Brake Makes Driving More Safty | |||
| ※ 100% Waterproof accelerator |
Key Components
| Item | Description | |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5301, 350A, imported from USA directly | Curtis controller 1234E-5321, 350A, imported from USA directly |
| Motor |
ADC brand Separately excited DC motor 48V 3.7kw |
ADC brand Separately excited AC motor 48V 5kw |
| Battery | Trojan battery, T875,6V*12pcs, imported from USA directly | Trojan battery, T875,6V*12pcs, imported from USA directly |
| Transaxle |
Italian GRAZIANO axle with gear ration 1:12 |
Italian GRAZIANO axle with gear ration 1:16 |
| Charger |
High Frequency onboard charger 48V/17A regulator |
High Frequency onboard charger 48V/17A regulator |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red | |
| Green | Dark green | Yellow | |
| Purple | Champagne | Black | |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color | |||
| Seat & Roof colour | Black | Beige | White |

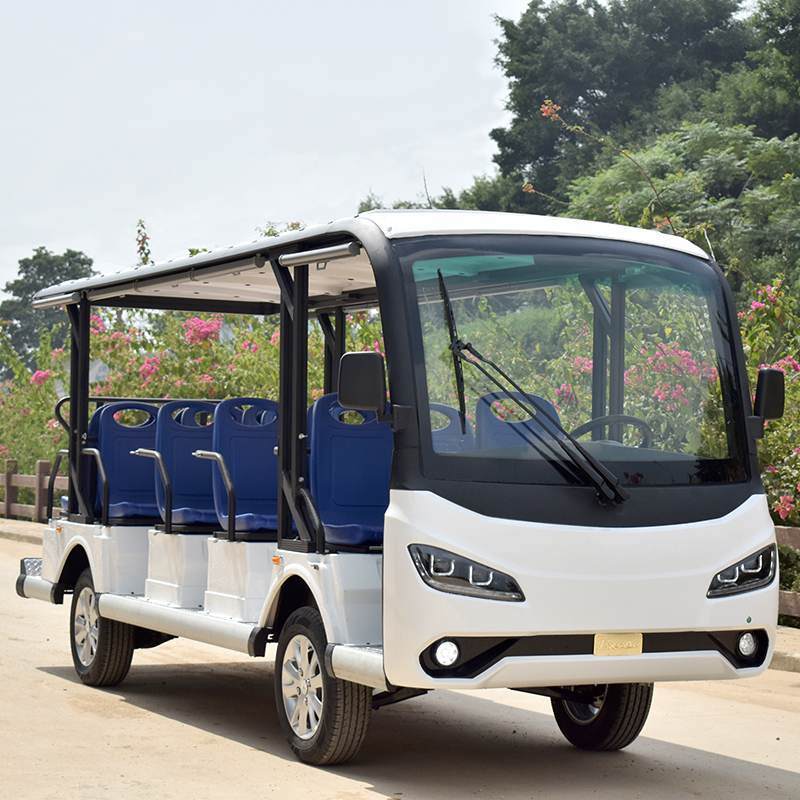

Product Image
Application
Our electric cart can be used in many places,Golf Course,Resort,Hotel,Theme Park,Amusement Park,Garden,Residential Community,Inside factory,Shopping mall,Musuem,Campus,Station, Port,Zoo,Any place where a green, quiet and cost effective vehicle is needed.
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
