Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: G11
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Negotiate
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 11 | 11 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
| CONFIGURATION | |
| MOTOR: | EXCAR 72V 7.5KW(AC) |
| CONTROLLER: | EXCAR 72V 350A AC CONTROLLER |
| BATTERIES: | 72V |
| CHARGER: | 72V 30A INTELLIGENT ONBOARD CHARGER |
| CHASSIS CONFIGURATION | |
| TRANSAXLE: | HEAVY DUTY AXLE WITH DIFFERENTIAL GEAR |
| BRAKE SYSTEM: | VACUUM BOOSTER HYDRAULIC BRAKE |
| STEERING SYSTEM: | EPS(ELECTRIC POWER STEERING) SYSTEM |
| F/R SUSPENSION: | MCPHERSON INDEPENDENT SPRING SUSPENSION |
| TYRE: | 165/70R-12 TYRE |

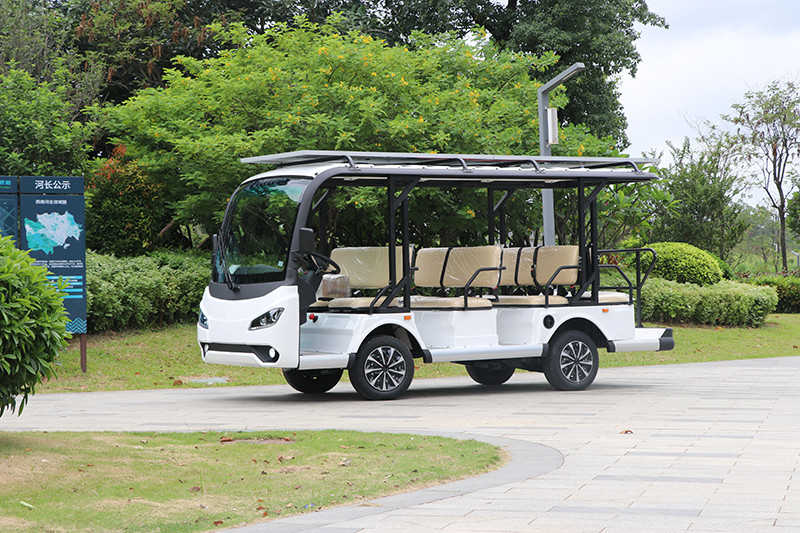

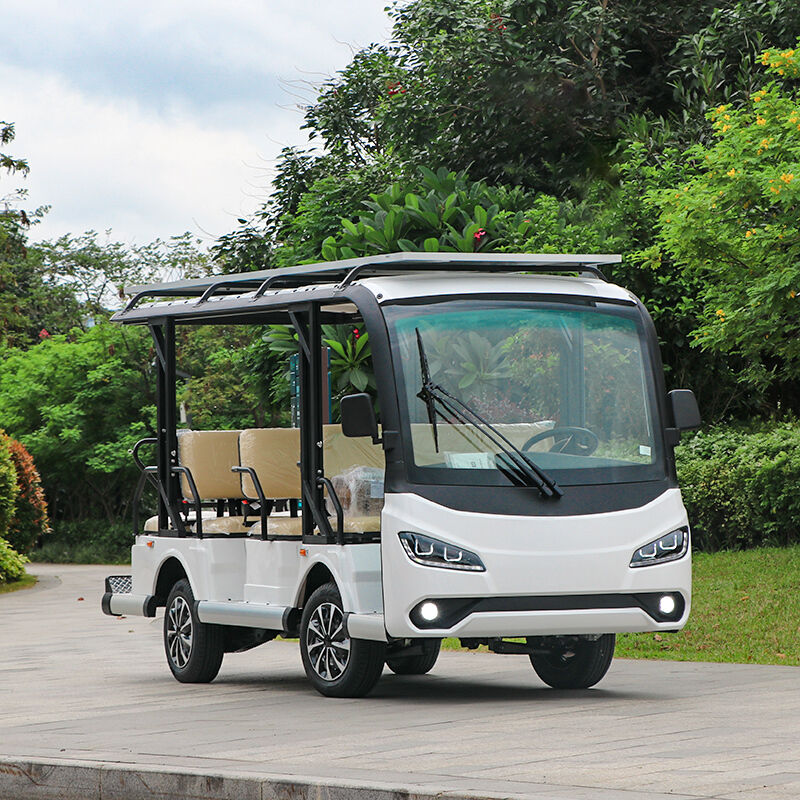

EXCAR G11 Person Electric Sightseeing Bus 7.5KM 72V Trojan Electric Sightseeing Car
Our golf cart has the same parts with Club Car,so the warranty can be gurantee,details parts listed as below:
| ~ Advanced Disc Brake Technology | |||
| ~ Global Special LED Headlight | |||
| ~ Italy Graziano Transaxle | |||
| ~ Curtis Controller 48V 275A | |||
| ~Special Design Battery Tray | |||
| ~Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ~Automotive Safty Glass Windshield | |||
| ~Deep Cup Holders | |||
| ~USA Imported Unique E-KEY | |||
| ~ Eletromagnetic Brake Makes Driving More Safty | |||
| ~ 100% Waterproof accelerator |
