Product Details
Place of Origin: China
Brand Name: Excar
Certification: CE
Model Number: G14
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Negotiate
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Model NO.: |
G14 |
Power: |
7.5KW |
Gradeability: |
20-30% |
Maximum Speed: |
20-30 Km/h |
Voltage Of Battery: |
72V |
Suitable For: |
Tourist Area, Amusement Park, Golf Course, Resort |
Model NO.: |
G14 |
Power: |
7.5KW |
Gradeability: |
20-30% |
Maximum Speed: |
20-30 Km/h |
Voltage Of Battery: |
72V |
Suitable For: |
Tourist Area, Amusement Park, Golf Course, Resort |
| CONFIGURATION | |
| MOTOR: | EXCAR 72V 7.5KW(AC) |
| CONTROLLER: | EXCAR 72V 350A AC CONTROLLER |
| BATTERIES: | 72V |
| CHARGER: | 72V 30A INTELLIGENT ONBOARD CHARGER |
| CHASSIS CONFIGURATION | |
| TRANSAXLE: | HEAVY DUTY AXLE WITH DIFFERENTIAL GEAR |
| BRAKE SYSTEM: | VACUUM BOOSTER HYDRAULIC BRAKE |
| STEERING SYSTEM: | EPS(ELECTRIC POWER STEERING) SYSTEM |
| F/R SUSPENSION: | MCPHERSON INDEPENDENT SPRING SUSPENSION |
| TYRE: | 165/70R-12 TYRE |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
Performance
| Item | Description | |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 20% | 25% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 50-70km | 60-80km |
| Charging time | 8-10 hours | 8-10 hours |
| Max.loading weight | 510kgs | 510kgs |
| Min.turning radius | 5.1m | 5.1m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |

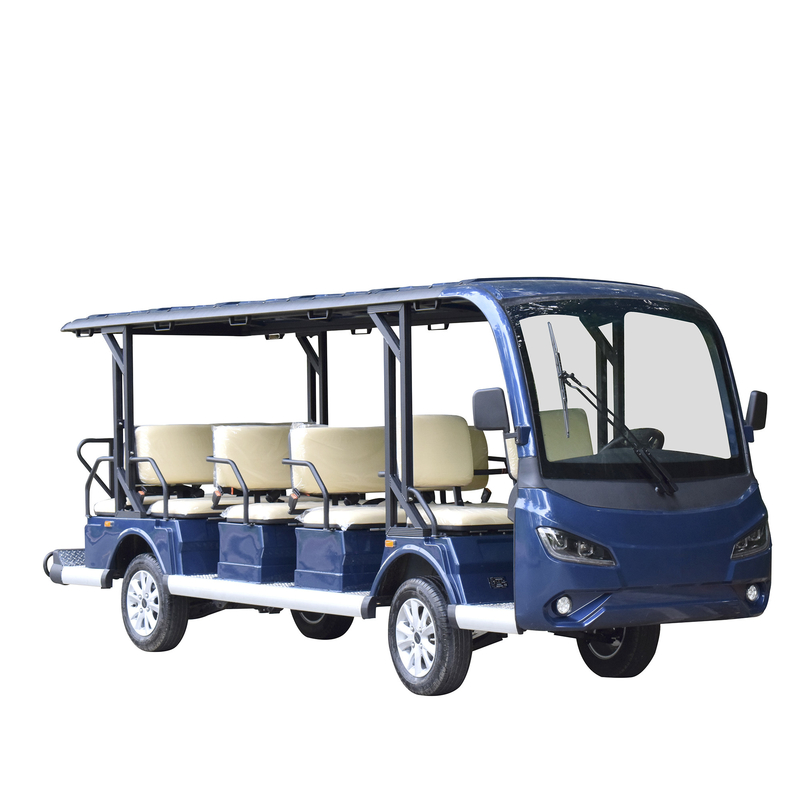

EXCAR G14 Person Electric Sightseeing Bus 7.5KM 72V Trojan Electric Sightseeing Car
Our golf cart has the same parts with Club Car,so the warranty can be gurantee,details parts listed as below:
| ~ Advanced Disc Brake Technology | |||
| ~ Global Special LED Headlight | |||
| ~ Italy Graziano Transaxle | |||
| ~ Curtis Controller 48V 275A | |||
| ~Special Design Battery Tray | |||
| ~Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ~Automotive Safty Glass Windshield | |||
| ~Deep Cup Holders | |||
| ~USA Imported Unique E-KEY | |||
| ~ Eletromagnetic Brake Makes Driving More Safty | |||
| ~ 100% Waterproof accelerator |
Electric System
| Item | Description |
| Lights |
48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 48V |
| Reverse buzzer | Electric, 48V |
| Combination switch | Control the lights and horn |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20" container | 40" container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film
